Eco Solvent Hybrid Printer HE-2000S image Eco Solvent Hybrid Printer HE-2000S image

If your main business is outdoor and indoor banner or vinyl printing, and in the mean time, you also have some order of PVC board /KT board printing,then this Eco solvent hybrid printer will be one perfect choice for you. It is not simply add one flat table for the machine: The belt platform enables you to shift roll material and flat material freely. No need any adjustment the pinch roller or calibrate the media stepping.

overview images

Equipped with Epson latest industrial level i3200-E printheads, powered by advanced PrecisionCore technology, guarantee the high resolution, high efficiency and high stability production.

overview images

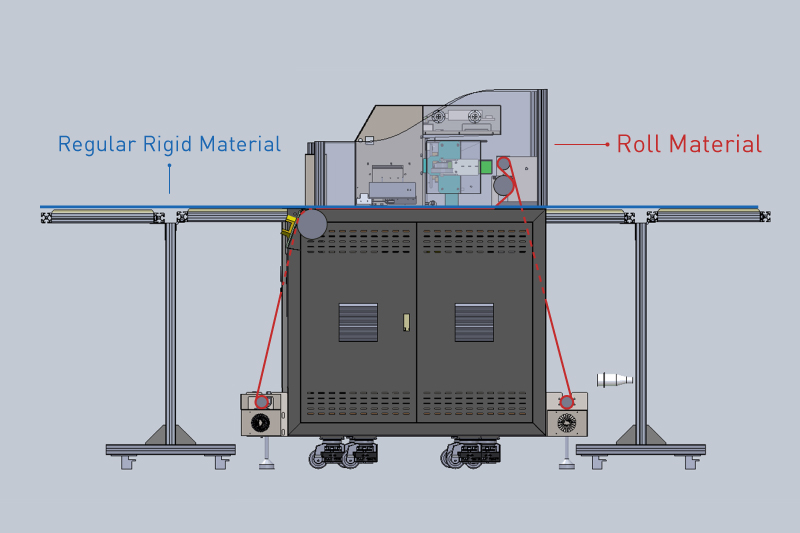

Well-designed machine structure, excellent for printing of both roll material, and regular rigid material.

overview images

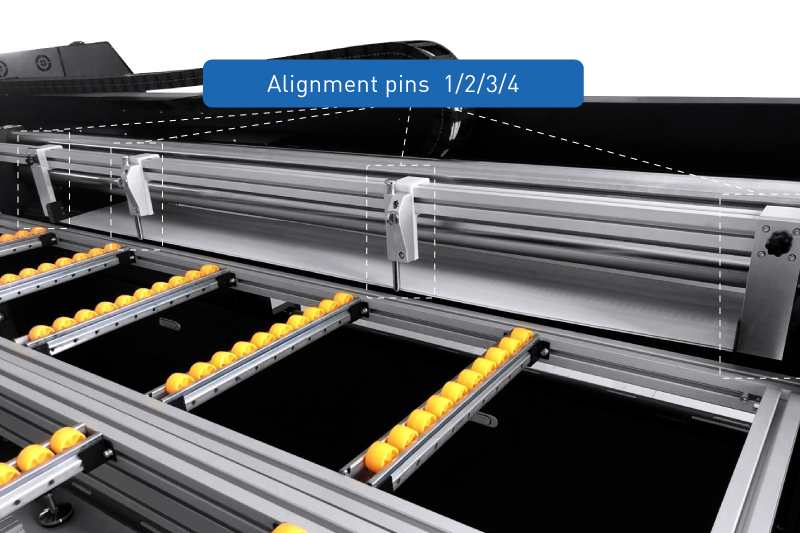

Equipped with three sets pneumatic media press bar to cooperate with the well-designed media alignment pins component, guarantee the high accuracy media stepping during printing.

overview images

Advanced inflatable roller are applied to the media feeding and take-up system, perfectly meet the requirement of high precision printing of different types roll material

overview images

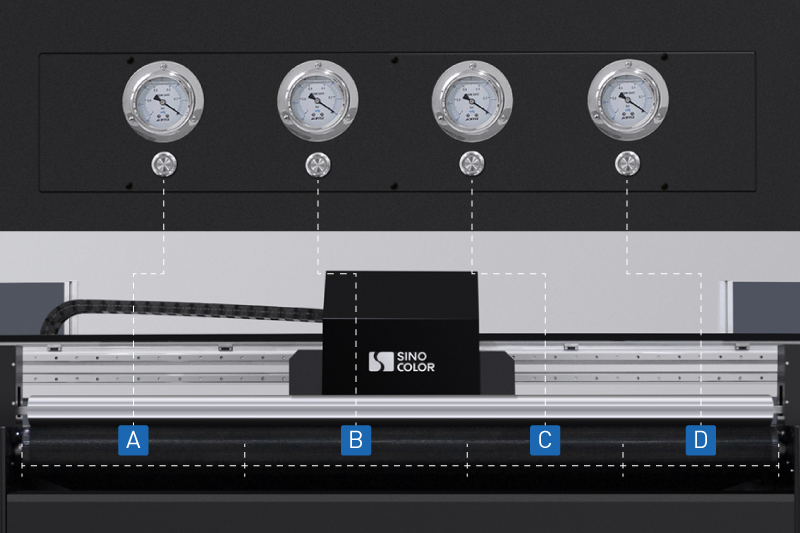

Independent design of the printer vacuum platform. Four vacuum zones are electronic controlled. Convenient, high efficiency, energy saving.

overview images

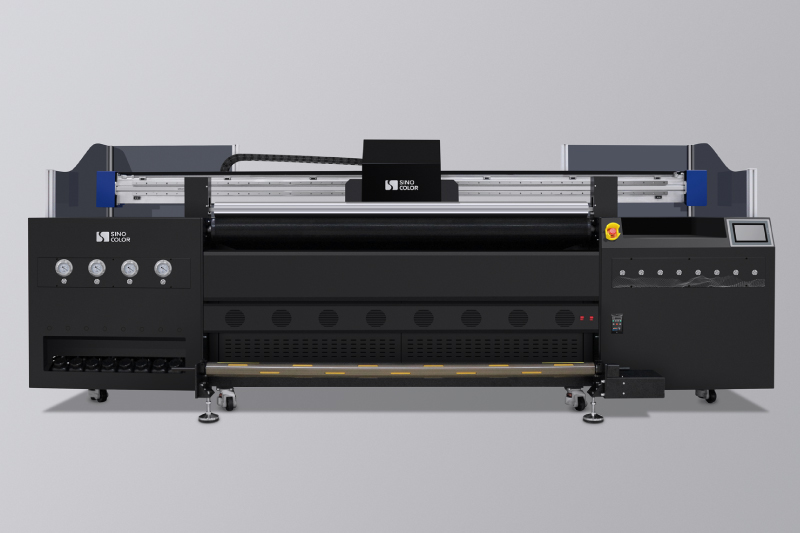

Elegant and sleek appearance design, not only an advanced printing equipment, but also a decoration for the company.

overview images

Integrated machine control centre. Convenient and high-efficiency.

overview images

Dual guide rail configuration, guarantee the stability of long time running.

overview images

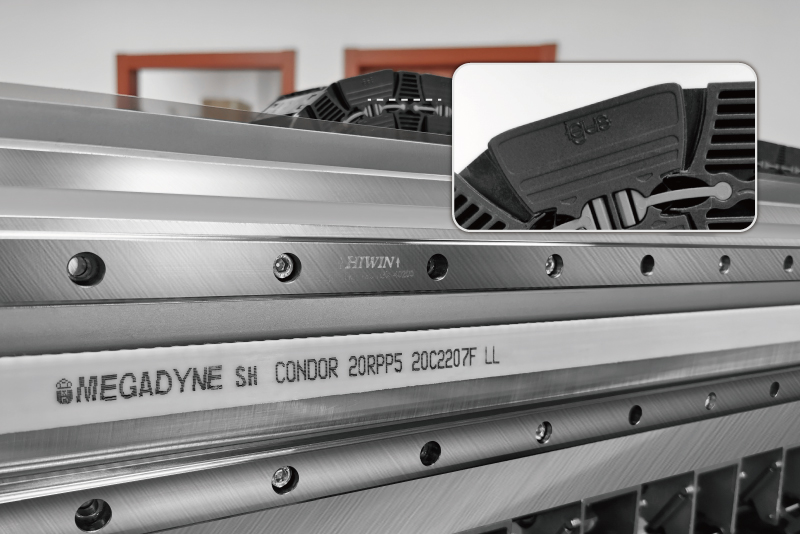

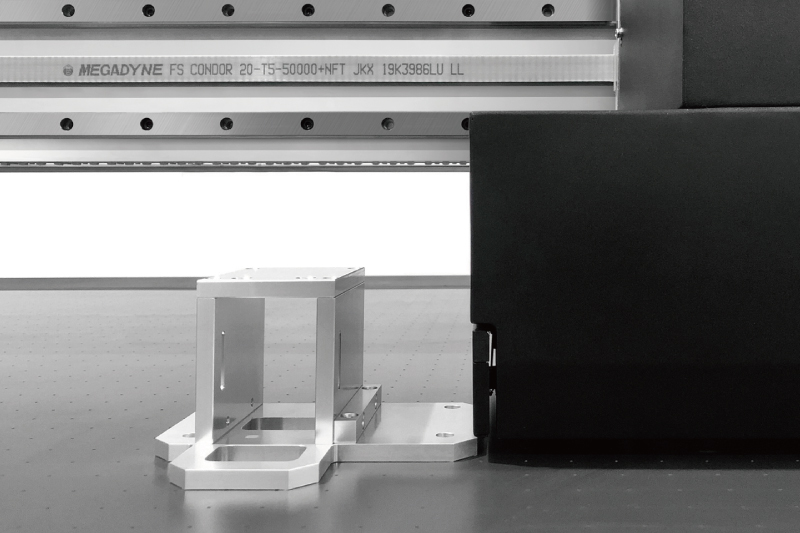

Branded accessories are used for high attrition area. Greatly increased the lifetime and stability of the machine. For example, the Hiwin guide rail, German Igus drag chain, Italian Megadyne belt.

overview images

Ultra wide one-time molding aluminum beam. Ensure the high resolution printing.

overview images

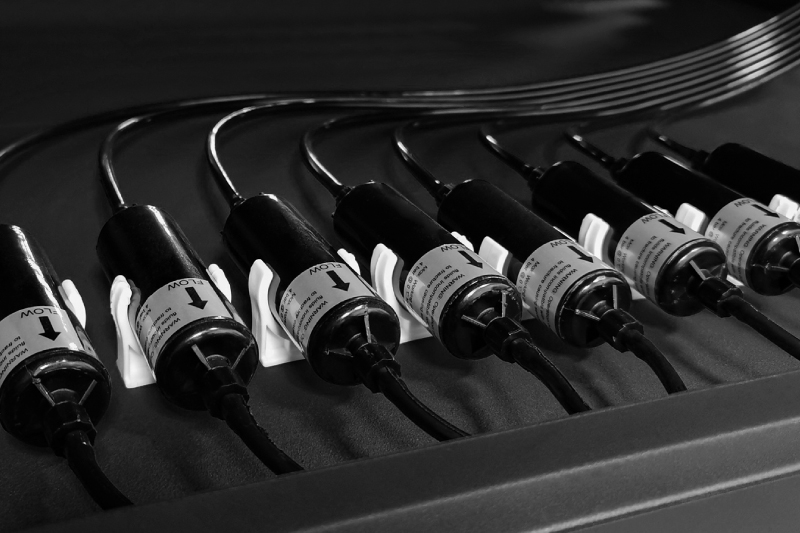

Rigorous ink filtration design, Effectively avoid the impurities from going into the ink supply system.

overview images

Modular component design for the connection of printhead and ink supply system, makes the printhead installation, cleaning and replacing to be quite convenient.

overview images

Printer will automatically stop when the printhead carriage hit any unexpected object during working, and system memory function support continuing printing from the interruption part, reduce the material waste.

overview images

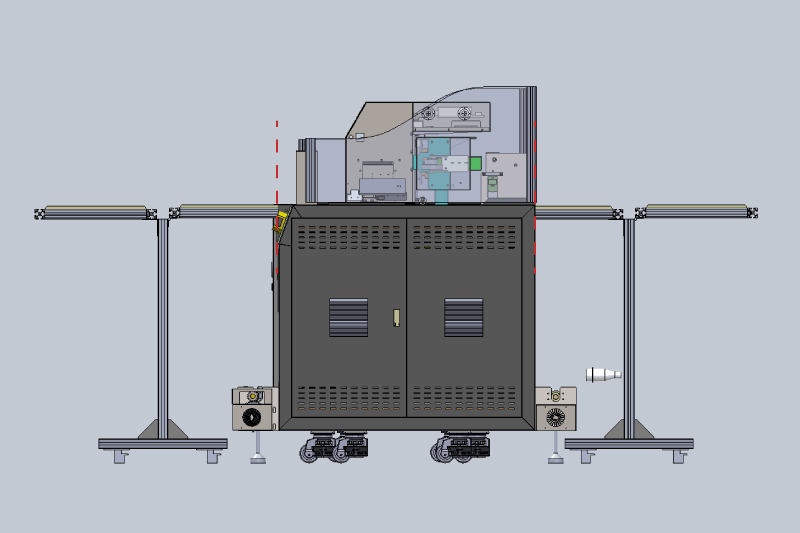

Movable and foldable front and back platforms are standard equipped. Convenient for storage.

APPLICATION

application images
application images
application images
application images
application images
application images
Model No. HE-2000S
Printing Head  2× Epson i3200-E

4 × Epson i3200-E

Resolution 2400 dpi MAX
Media Width 2000 mm MAX
Type

Flex banner, vinyl, one way vision, pp paper, photo paper, tarpaulin, canvas, PVC board, KT board,etc.

Thickness 0-5 cm
Ink Type Eco Solvent Ink
Color CMYK
Speed Draft 43 sqm/h 85 sqm/h
Production 33 sqm/h 65 sqm/h
Quality 25 sqm/h 50 sqm/h

Heating & Drying

Standard IR Heater and Front Drying Fan

Cleaning

Automatic Cleaning, Anti-Clogging Flash Function & Capping System

Feed & TakeUp Automatic Media Feeding (Standard) & Take up System (Standard)
Rip Software

Maintop (Standard ), Photoprint (Optional)

Connector USB 3.0
Power AC 110V / 220V ± 5%, 16A, 50/60Hz ± 1, 1500W MAX
Size Machine L3817 × W2817 x H1455mm
Packing L3917 x W1224 x H1685mm
Weight Machine 850 KG
Packing 1100 KG
