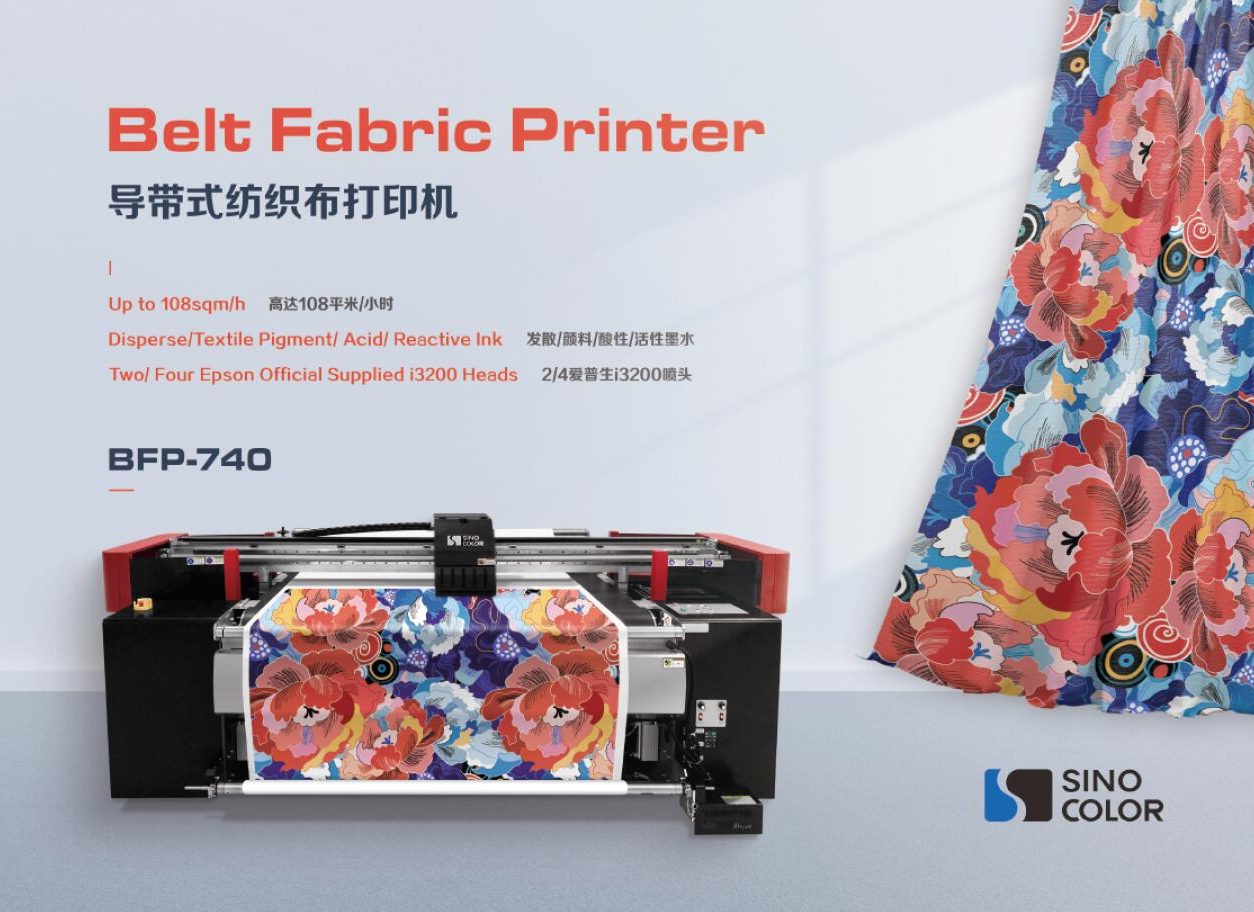

Belt Fabric Printer BFP-740 image Belt Fabric Printer BFP-740 image

For the traditional screen printing, complicate pre-treating and after-treating are required. While with the belt fabric printer, which can work with disperse ink, pigment ink, acid ink and reactive ink, then print directly onto fabric easily. Especially for pigment ink, need only three steps: Printing, and heat fixation only. This digital printing make customize or DIY printing to be possible. And the belt type media feeding system, enable the printing of textile with different elasticity. Achieve maximum business potential.

overview images

Epson Official Supplied i3200 Heads

Equipped with 2 or 4 pcs Epson official supplied i3200 printheads. High productivity choice

overview images

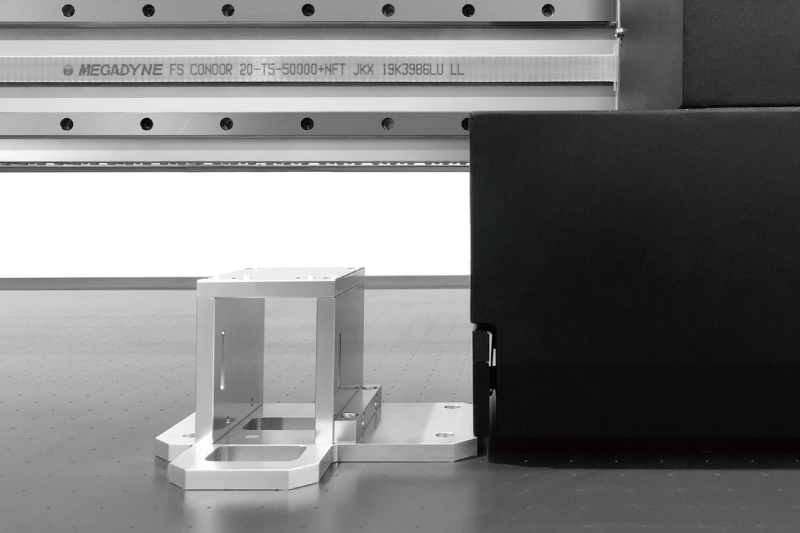

Anti-collision System

Printer will automatically stop when the printhead carriage hit any unexpected object during working, and system memory function support continuing printing from the interruption part, reduce the material waste.

overview images

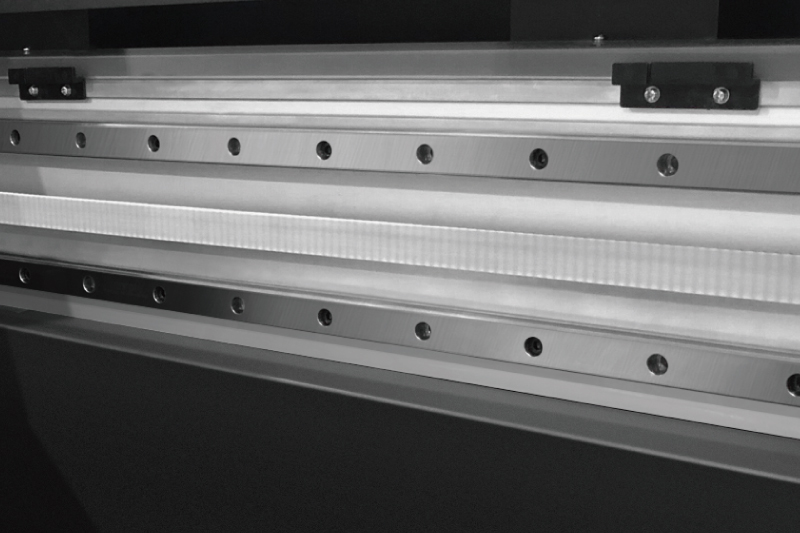

Dual Guide Rail

Dual guide rail configuration, guarantee the stability of long time running.

overview images

Well-designed Deviation Correcting System

Automatically adjust the possible error of moving direction and tightness after long-term running



overview images

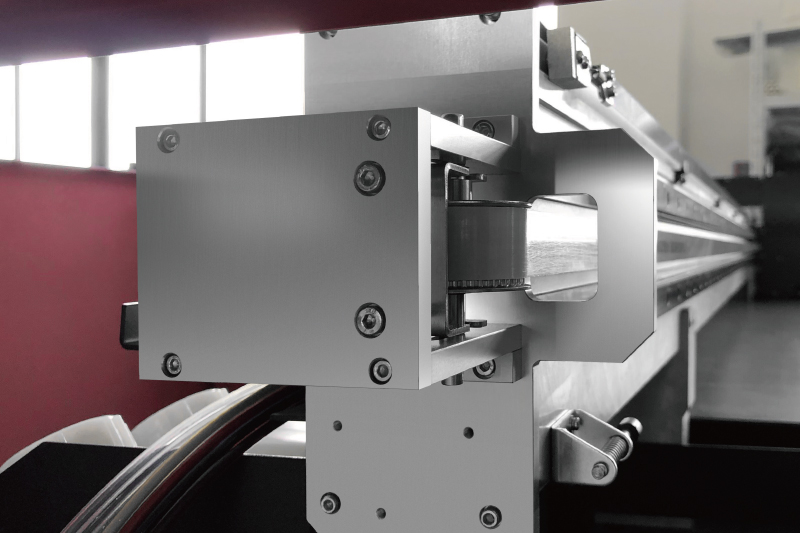

Elaborate Processing Component

Elaborate Processing of Printer Carriage Component,Guarantee the high precision output.

overview images

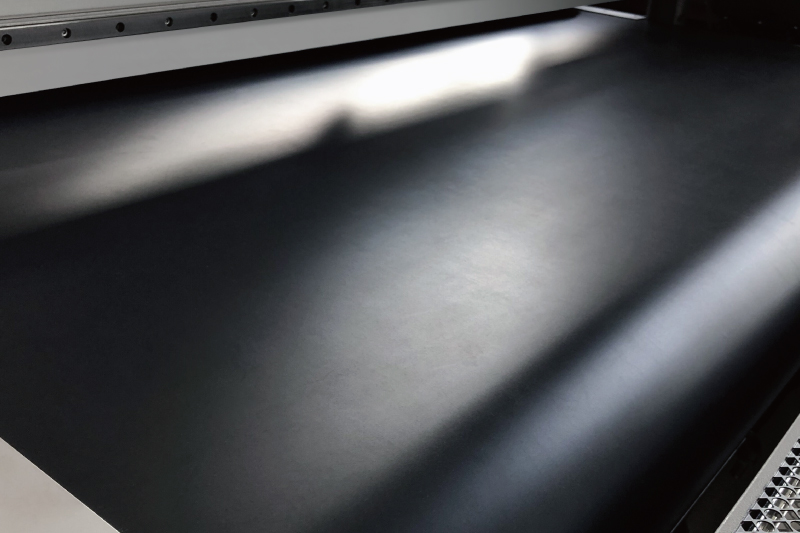

High Grade Material Made Belt

Effectively protect the fabric.

overview images

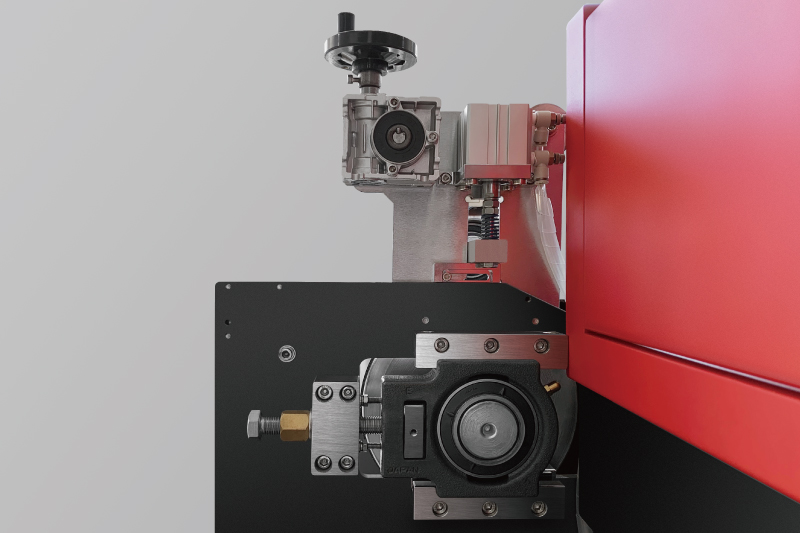

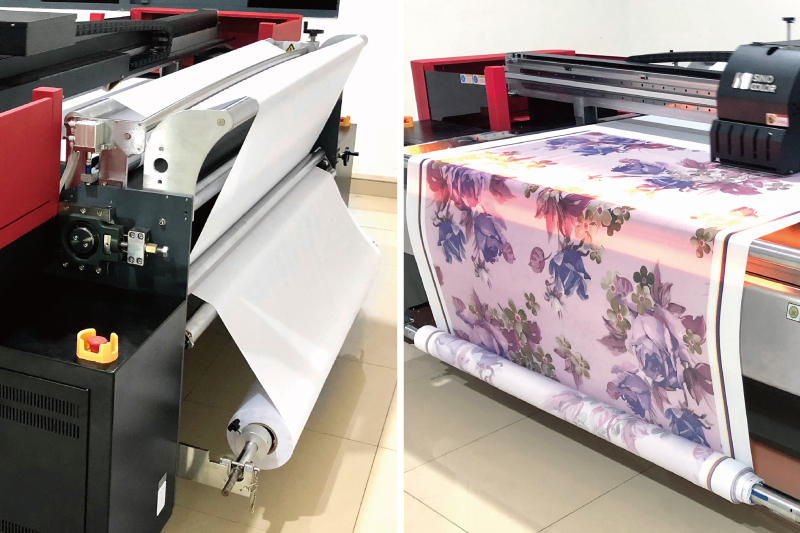

Tension Media Feeding And Take-up System

Apply to material with different elasticity

overview images

Standard Belt Cleaning System

The water jet and brush roller are equipped to guarantee the cleaning of the belt

overview images

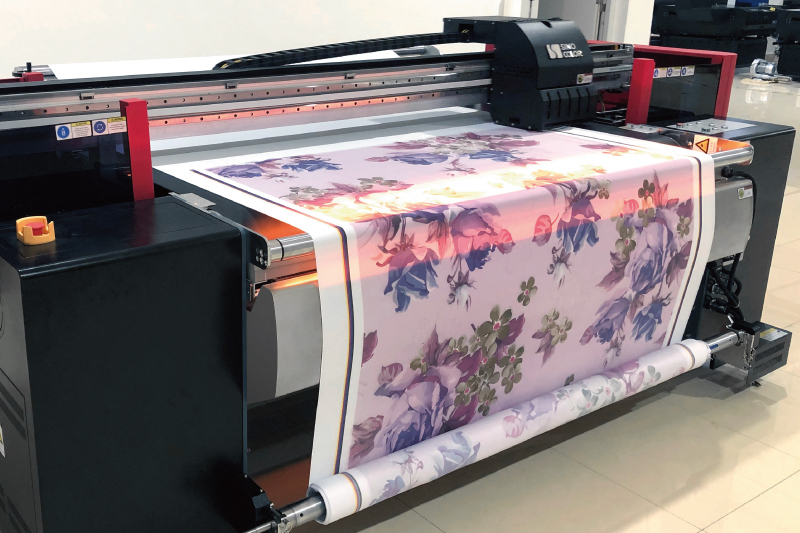

Super Wide Heating Device

Guarantee the drying of ink on fast speed printing mode. Get ready for after-treatment

overview images

Modular Printhead Connecting Component

Modular component design for the connection of printhead and ink supply system, makes the printhead installation, cleaning and replacing to be quite convenient.

overview images

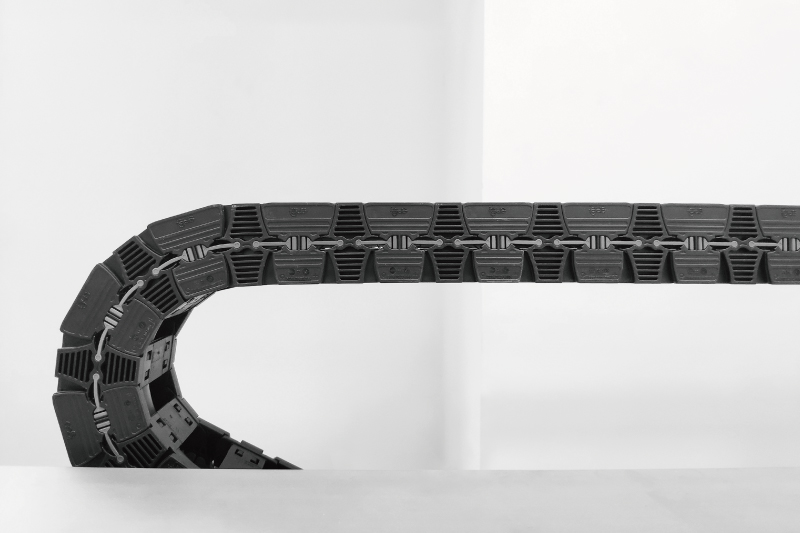

Germany Igus Drag Chain

High Grade Two-layer Germany Igus Drag Chain. Effectively protect ink tube and cables.

overview images

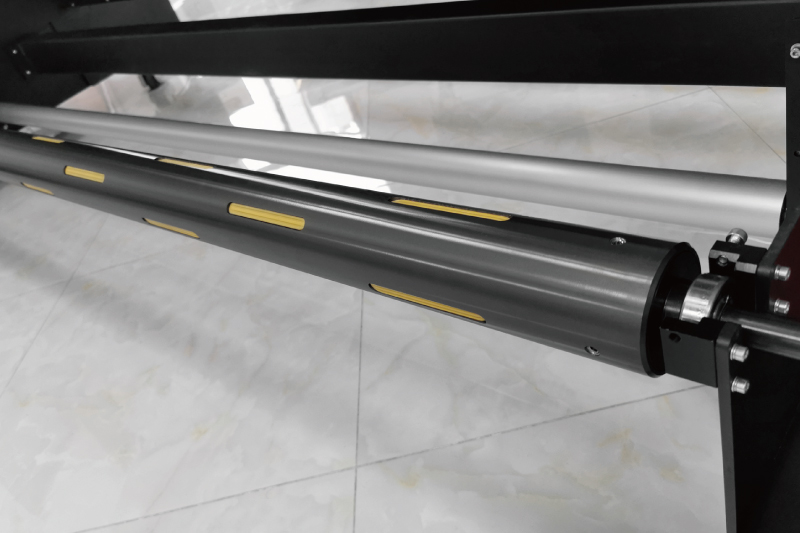

Heavy Duty Roller

Heavy duty material roller, load-bearing can reach maximum 180KG. And it can adapt to different diameter material by adjusting the air pressure inside the roller.

Application

application images
application images
application images
application images
application images
application images
application images
application images

For the traditional screen printing, complicate pre-treating and after-treating are required. While with the belt fabric printer, which can work with disperse ink, pigment ink, acid ink and reactive ink, then print directly onto fabric easily. Especially for pigment ink, need only three steps: Printing, and heat fixation only. This digital printing make customize or DIY printing to be possible. And the belt type media feeding system, enable the printing of textile with different elasticity. Achieve maximum business potential.

Model NO. BFP-740



 Printhead

Type 2 x Epson i3200 4 x Epson i3200
Nozzles 3200 Nozzles Per Head
Max Material Thickness 3cm
Max Printing Width 1.8m (2.5m &3.2m available)
Resolution (dpi) 2400 dpi
Media Types Cotton, Viscose, Polyester, Polyamide, Silk, Wool



Ink

Type Disperse/ Pigment/ Acid/ Reactive Ink
Color C M Y K / C M Y K White
Droplet 1.5 – 21pl Variable



Speed

Draft 64 sqm/h 120 sqm/h
Production 32 sqm/h 60 sqm/h
High Quality 21 sqm/h 40 sqm/h
Feeding & Take-up Automatic Tension Type Media Feeding & Take-up System (Standard)
Head Cleaning System Automatic Cleaning, Anti-Clogging Flash Function & Capping System
Belt Cleaning System Auto Water Jet and Brush Roller
Heating System IR Heater & Front Ultra-wide Heating Device
Environment Temperature: 20-28°C, Humidity: 40-60%
Rip Software Maintop (Standard),  FlexiPrint (Optional)
Control Software SinoColor Print Console
Interface USB 3.0
Operation System Windows 7 / XP/ 10
Power AC 110 / 220V, 50 / 60Hz, 2000W
