DTF Garment Printer DTF-800D/DTF-600D/DTF-400D image DTF Garment Printer DTF-800D/DTF-600D/DTF-400D image

The Magicube DTF-400D series printer, is one machine that built for DTF garment printing. Thus it considerred more about the golden size, the gurantee of high precision, the best combination of printing & powder treating. It’s specialist to support your DTF printing business.

overview images

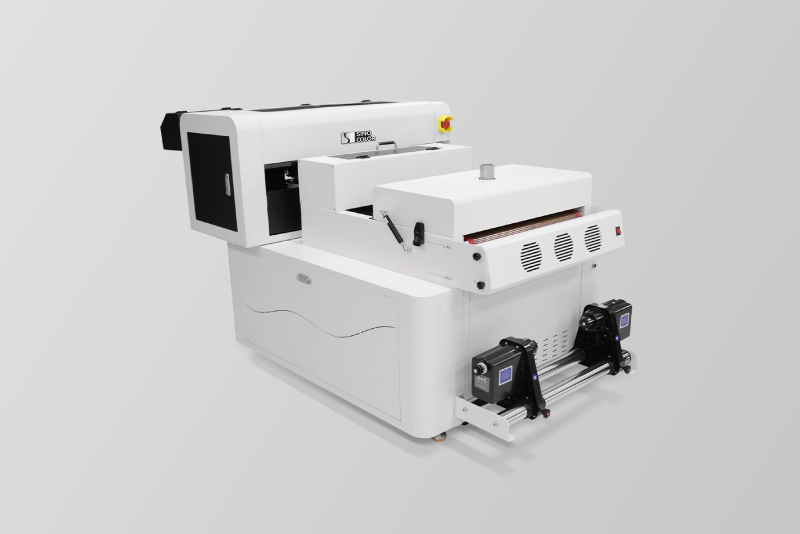

Compact Integrated Design

Compact and elegant design,strong ,space saving, easy operation,provide high accuracy output.Not only one partner for your printing business, but also a decoration for the company.

overview images

Epson official Printheads

Equipped with Epson officially supplied i1600 /i3200 heads (2/3/4 pcs). Powered by PrecisionCore technology. Quality and speed are guaranteed.

overview images

Golden Production Size

40cm working width and well matched PET film,and achieve golden production size for garments printing.

overview images

Multifunction Machine For Mass Production

Apply to different fabrics including cotton, polyester,nylon, denim,etc. Make the mass production of DIY t-shirts, hoodies, sportswear,pants,canvas bags to be convenient.

overview images

White Ink Stirring System

Reduce problems caused by white ink precipitation.

overview images

High Quality Components

Branded accessories such Hiwin guide rail, Italian Megadyne belt are used for high attrition area, with the one time molding aluminum beam, greatly increased the precision, stability and lifetime of the machine.

overview images

Lack of Ink Alarm

Low ink alarm is  equipped to protect the printer.

overview images

Electric pinch roller control

One button to lift up and down the ultra-wide pinch roller.

overview images

Integrated control centre

Convenient and high-efficiency.

overview images

Anti-collision System

Printer will automatically stop when the printhead carriage hits any unexpected object during working, and the system memory function supports continuing printing from the interruption part, reducing the material waste.

overview images

Standard media take-up system

Well-designed media take-up system with motors on both side to assure a smooth and balanced material collecting. High precision printing is guaranteed.

overview images

Branded circuit breaker

Branded circuit breaker to protect the safety of the whole electronic system.

Application

application images
application images
application images
application images
application images
application images

The Magicube DTF-400D series printer, is one machine that built for DTF garment printing. Thus it considerred more about the golden size, the gurantee of high precision, the best combination of printing & powder treating. It’s specialist to support your DTF printing business.

Model No. DTF-800D(Plus) DTF-800S(Plus) DTF-400D DTF-600D
Printhead 2/3/4 Epson i1600 2/3/4 Epson i3200 2 x Epson i1600 2/3/4 Epson i1600
Resolution 2400dpi MAX
Ink Color CMYK+W (2/4 Heads)/ CMYK+W+Fluorescent Magenta & Yellow & Green & Orange(3 Heads)
Media Size 80cm 40cm 60cm
Types PET Film
Speed Draft 9 ㎡/h(2 heads) 7 ㎡/h 12 ㎡/h(4 heads)
Production 5 ㎡/h(2 heads) 4 ㎡/h 6 ㎡/h(4 heads)
Ink Type Pigment Ink
Ink Droplet 1.5-21pl variable
Application DIY Printing On T-shirt, Hoodies, Cap, Bag, Etc.
Powder Shaking
And Heating
Standard Equipped
Cleaning Automatic Cleaning, Anti-Clogging Flash Function & Capping System
Feed & take up Automatic Media Feeding ( Standard ) & Take up System ( Standard )
Environment Temperature: 20-28℃, Humidity: 40%-60%
Rip Software Maintop (standard)/ FlexiPrint (optional)
Interface USB 3.0
Power AC 110/ 220V, 50/ 60Hz, 3400W AC 110/ 220V, 50/ 60Hz, 2200W

Application

application images
application images
application images
application images
application images
application images
