A1 DTG Printer TP-900D image A1 DTG Printer TP-900D image

Direct to Garment (DTG) T-Shirt printing or digital T-Shirt printing is the process of printing full-colour images onto garments. DTG can be used on light or dark colored garments. Using the latest printing technology and top quality DTG machines, we  can print full-colour images onto a wide range of T-Shirts, polo shirts, hoodies and other clothing.

overview images

SinoColor System. Much more professional and more stable than desktop modified printer. Control the color freely.

overview images

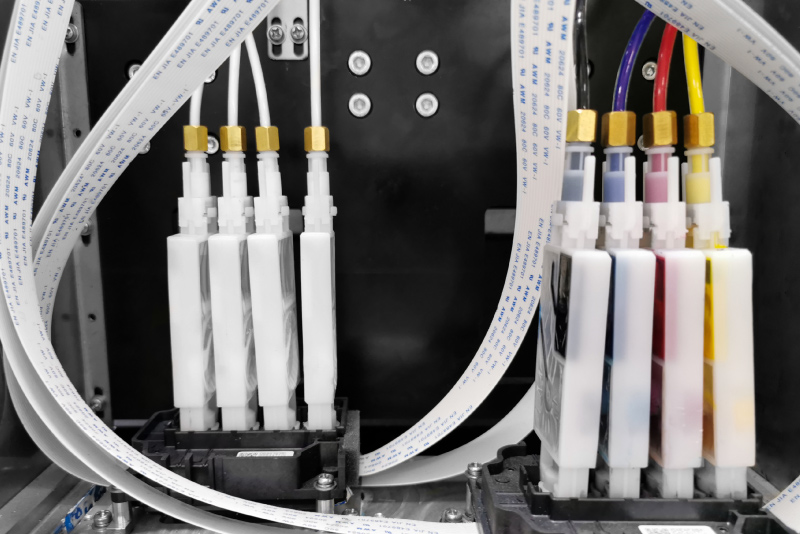

Dual Epson i1600/i3200 Heads equipped. Achieve real fast speed printing.

overview images

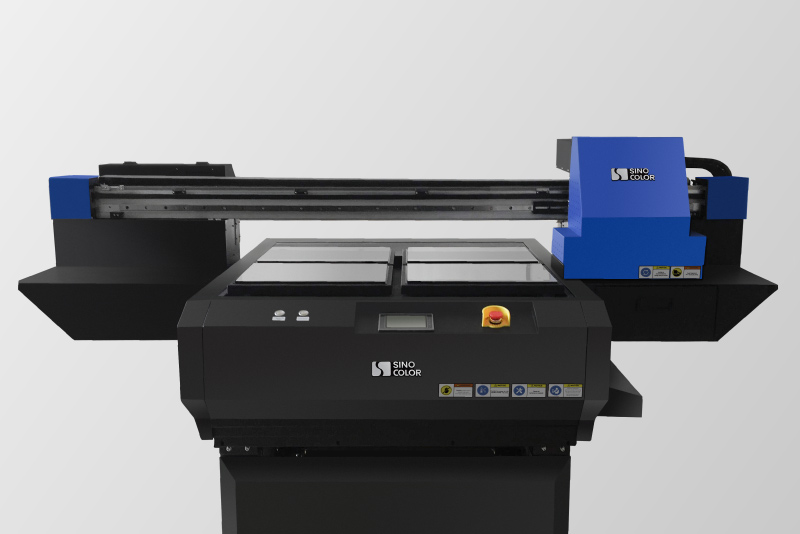

Build with four platforms. Effectively improve the work efficiency.

overview images

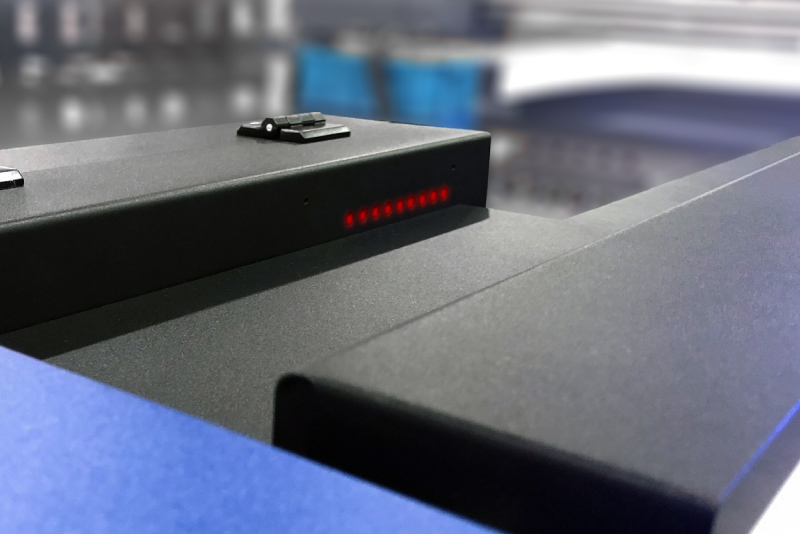

Anti-collision system is equipped to to protect the printhead and carriage all the time.

overview images

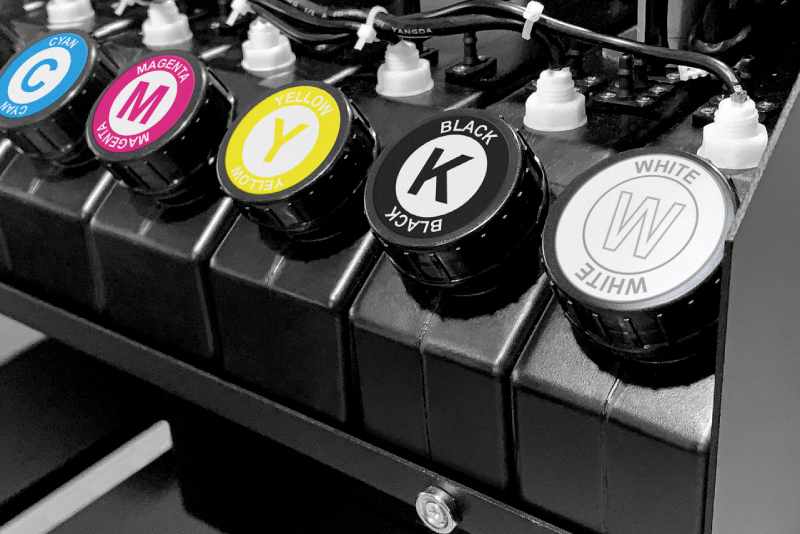

Lack ink alarm system is equipped. Give LED light signal remainding operator to fill the ink,no interruption during printing job any more.

overview images

White ink stir system is equipped. Decrease the problems caused by white ink precipitation.

overview images

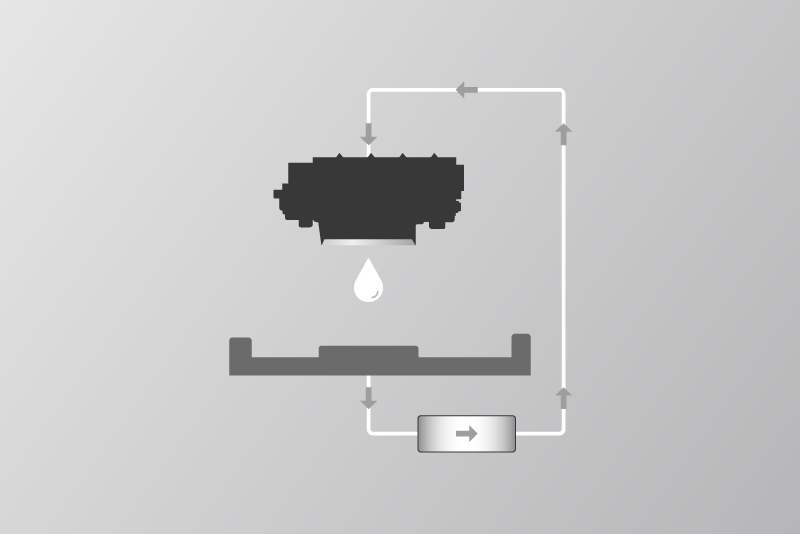

White ink collecting and reusing system is equipped. Collecting and filtering the ink from capping unit, then reusing. Greatly reduce the waste of white ink.

overview images

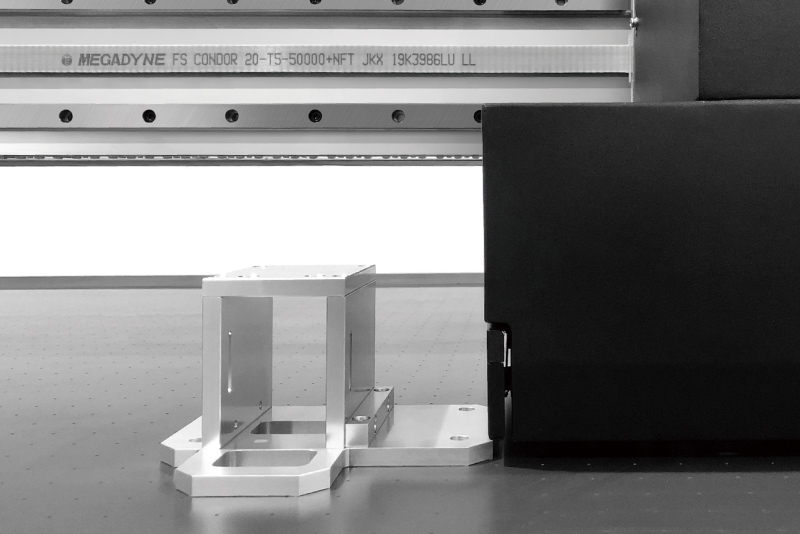

Triangular Aluminum Moulding Stracture, increase machine stability and extend machine durability.

overview images

One-time molding aluminum beam that ensure the high accuracy of each carriage movement.

overview images

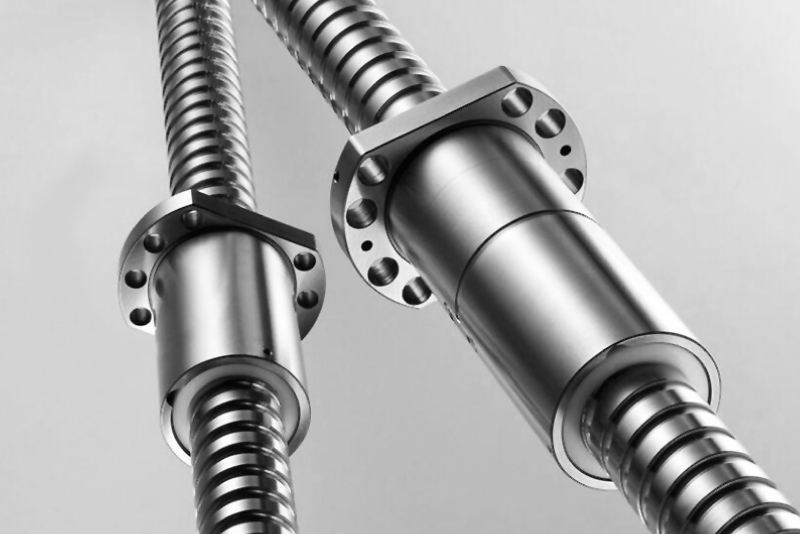

Screw rod type transmission for the Y axis. Guarantee the high precision of each printing.

overview images

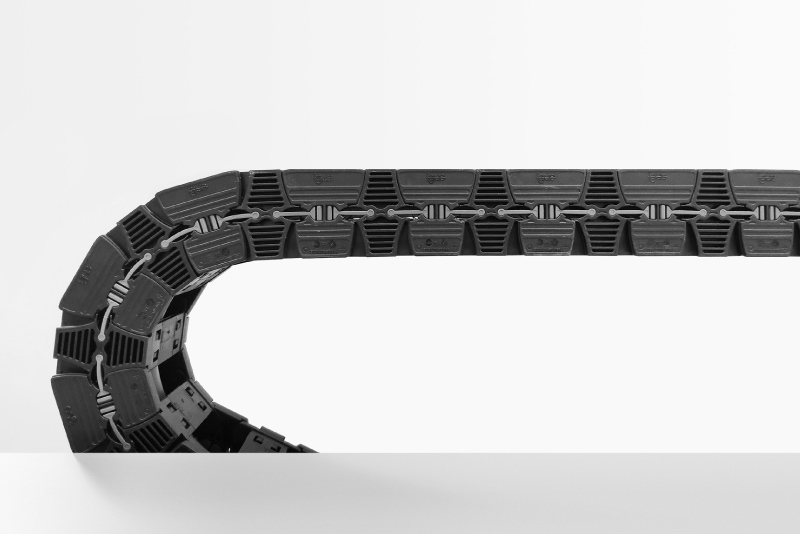

High grade two-layer Germany Igus drag chain. effectively protect ink tube and cables.

overview images

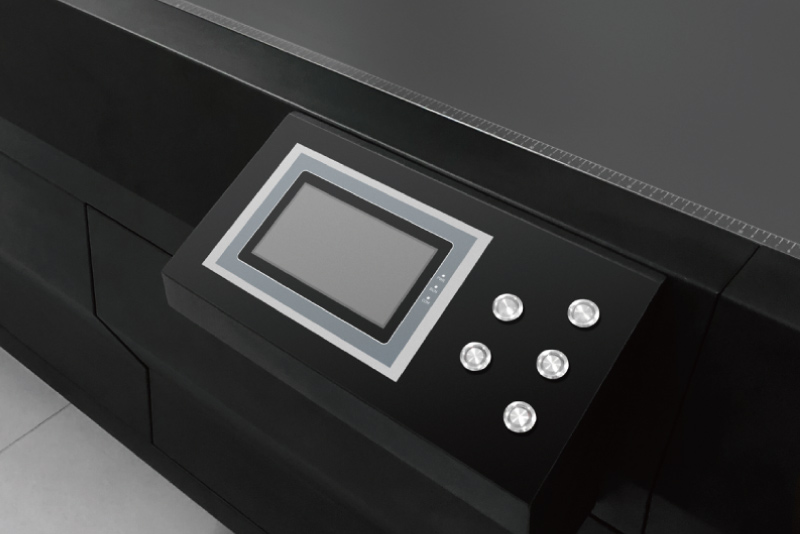

Well-desighed touch screen. Easily adjust platform position and do the basic setting.

overview images

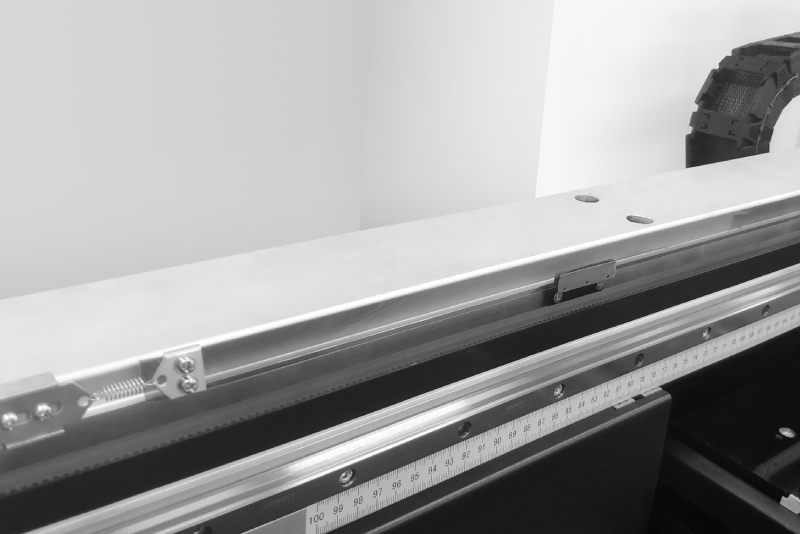

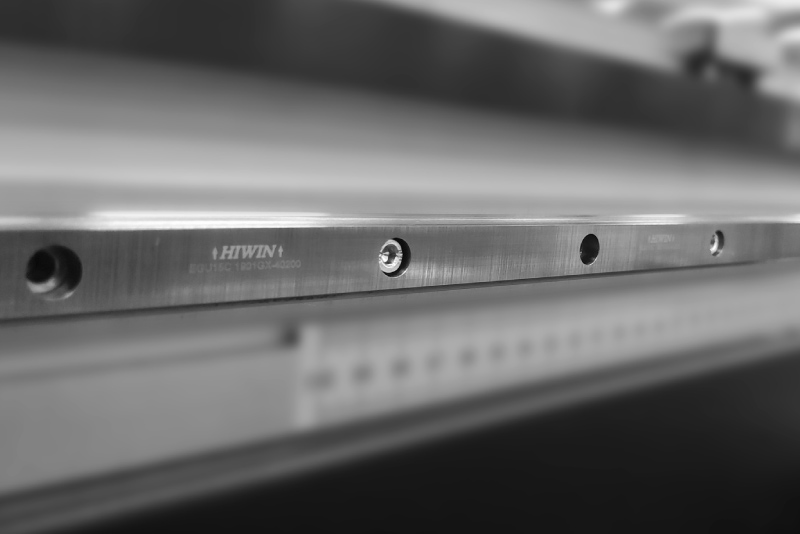

High quality branded guide rail, build for long time use.

overview images

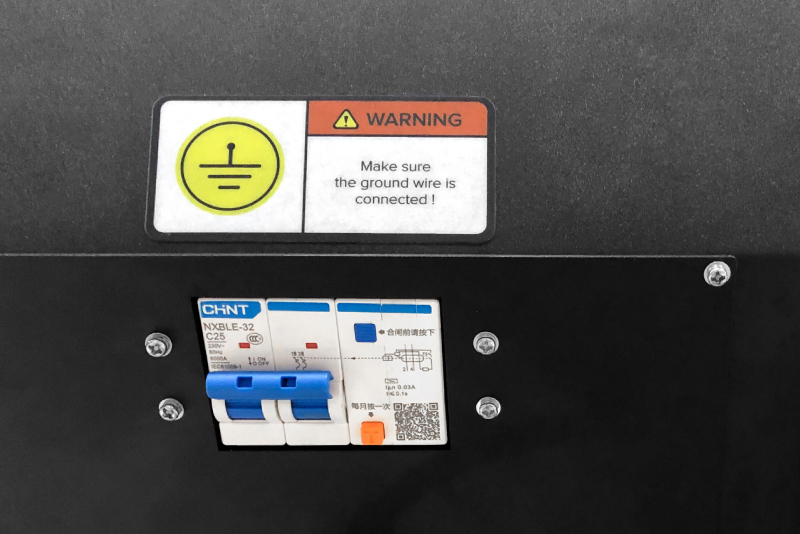

Branded circuit breaker to protect the safety of the whole electronic system.

Application

application images
application images
application images
application images
application images
application images

Direct to Garment (DTG) T-Shirt printing or digital T-Shirt printing is the process of printing full-colour images onto garments. DTG can be used on light or dark colored garments. Using the latest printing technology and top quality DTG machines, we  can print full-colour images onto a wide range of T-Shirts, polo shirts, hoodies and other clothing.

Model No. TP-900D
Printhead 2 x Epson i1600 Printheads (i3200 is available)
Resolution 2400dpi
Max Speed1 1 minutes for one T-shirt
Print Head Height 5 cm Max
Printing Size 4 pcs 30 × 40cm pallets
Print Direction Intelligence double side
Print Method micro piezo print technology, intelligence drops transformation technology
Height Adjust Electric
Distance of Print Head Printing 1-3 mm (2 mm is the best)
Ink Color 4 colors (CMYK) or 5 colors (CMYK,W)
Ink Supply System CISS
Ink Consumption 15-20 ml/ squre meter
Min Ink Drop Size < 1.5 PL
Interface USB 3.0
Rip Software Maintop (Standard) / FlexiPrint  (Optional)
Working Environment Temperature 18-30 Celsius, Humidity 30-70 RH, Clean room, Low dust, Less sun light
Power AC 110/220 V, 50 Hz/60 Hz
Size
&
Weight
Machine L2150 × W1350 × H1320 mm
Packing L2240 × W1450 × H1070 mm

Application

application images
application images
application images
application images
application images
application images
