A3/ A2 DTG Printer TP-300D/ TP-600D image A3/ A2 DTG Printer TP-300D/ TP-600D image

Direct to Garment printing is the process of printing full-colour images onto garments. It can be used on light or dark colored garments. Using the latest printing technology and top quality DTG machines, get the high added value for T-Shirts, polo shirts, hoodies and other clothing at the lowest cost.

overview images

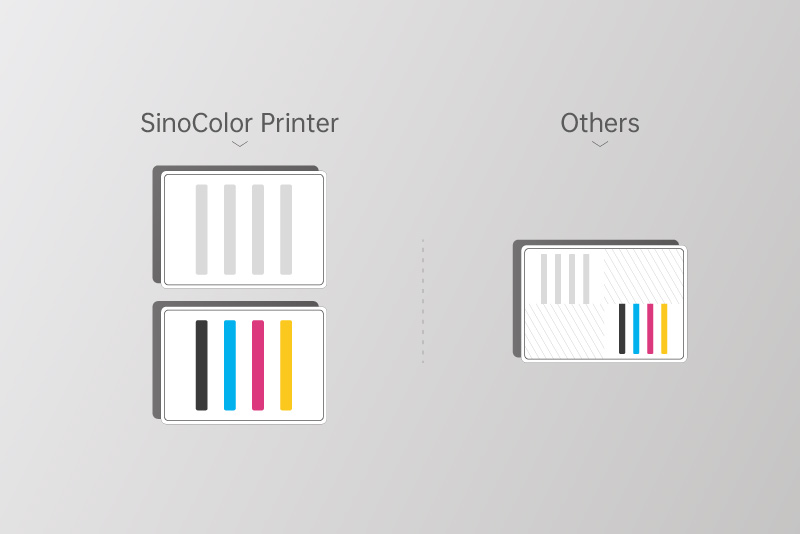

SinoColor System. Much more professional and more stable than desktop modified printer. Control the color freely.

overview images

One printer, two engines. Two printheads to drive the machine. One for color ink, one for white ink. Perfectly balanced the printing quality and productivity.Best solution for not only light color garment, but also dark color garment.

overview images

Maximumly use mold to produce machine components to achieve amazing resolution.

overview images

Automatic media height detecting system is standard equipped. Simplify the setting of proper platform height.

overview images

Low ink alarm,waste ink alarm are equipped to protect the printer.

overview images

High quality Hiwin steel guide rail. Build for long life use.

overview images

White ink circulation and stirring system are equipped. Reduce problem caused by white ink precipitation.

overview images

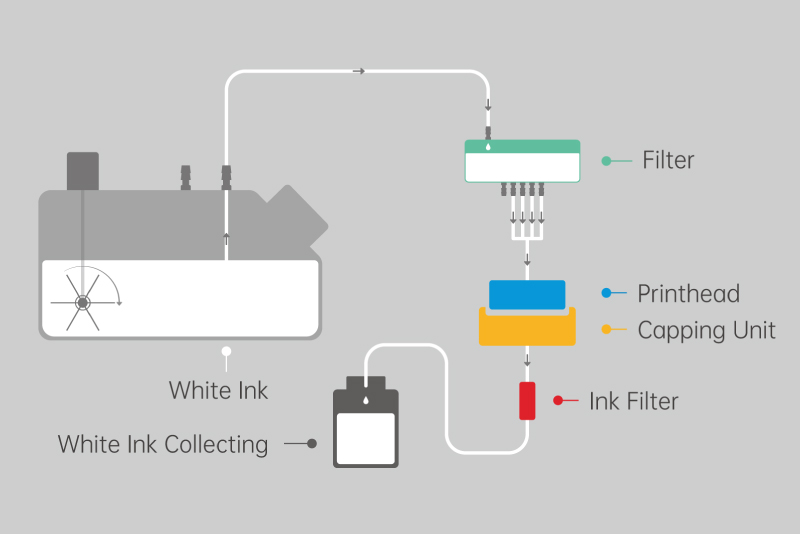

White ink collecting and reusing systems are equipped. Collecting and filtering the ink from the capping unit, then reusing. Greatly reduce the waste of white ink.

overview images

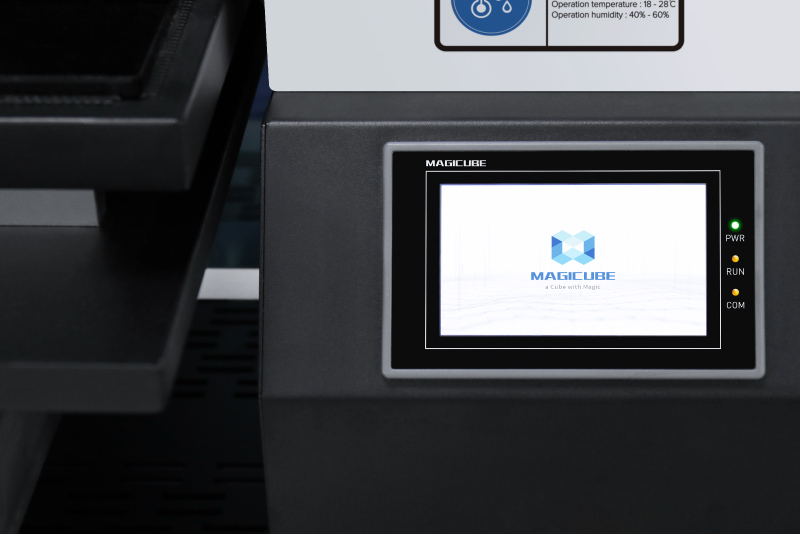

Well-designed touch screen. Easily Adjust platform position.

overview images

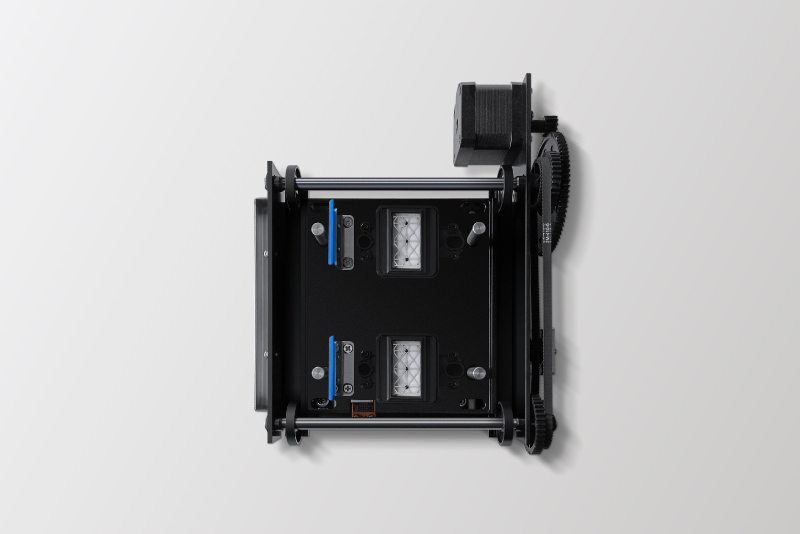

High accuracy and aluminum made capping station system. Lengthways design of two printheads, decrease the machine width and packing size. Besides, sufficient space between white printhead and color ink printhead, avoid the ink mixing problem, guarantee the bright output.

overview images

Screw drive transmission and dual Y-axis guide rail are equipped to guarantee the high precision printing.

overview images

Branded circuit breaker to protect the safety of the whole electronic system.

overview images

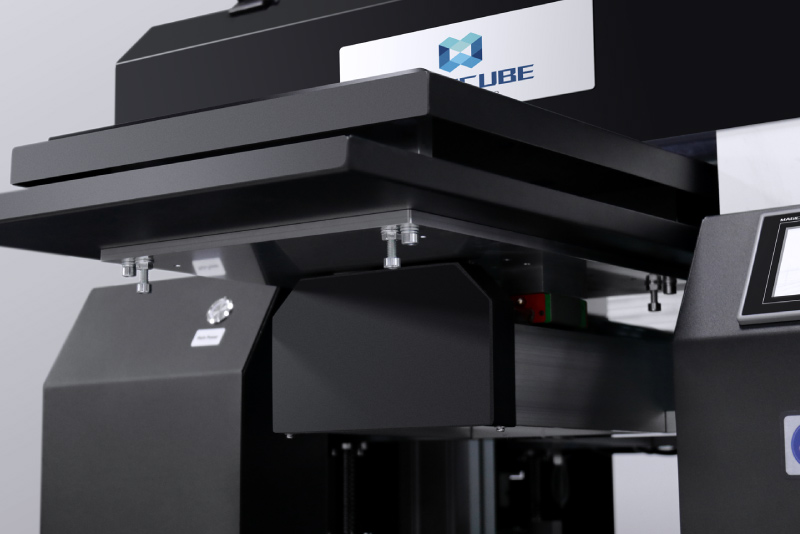

Well-designed adjustable platform. The good smoothness
of platform and high accuracy printing are guaranteed.

overview images

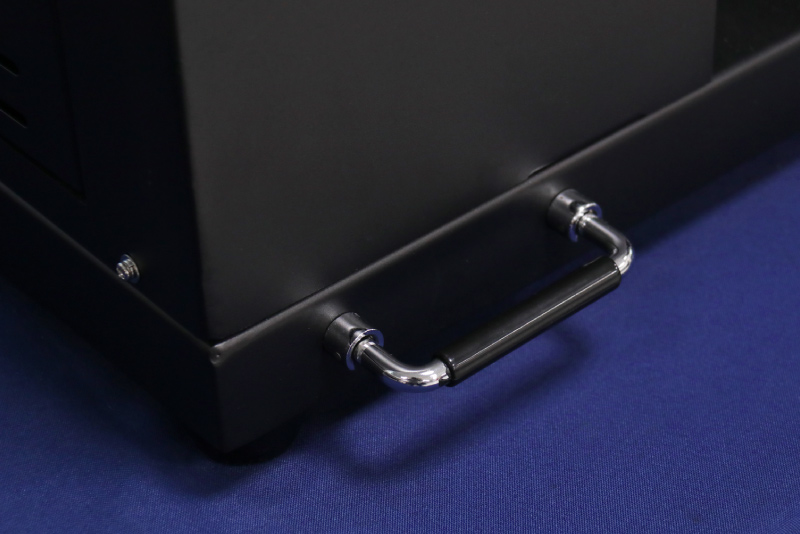

Attentive handle designing, lift and move the equipment easily.

Application

application images
application images
application images
application images
application images
application images

Direct to Garment printing is the process of printing full-colour images onto garments. It can be used on light or dark colored garments. Using the latest printing technology and top quality DTG machines, get the high added value for T-Shirts, polo shirts, hoodies and other clothing at the lowest cost.

Model No. TP-300i TP-300D TP-600i TP-600D
Print Head 1XEpson Head 2 x Epson i1600 Heads 1XEpson Head 2 x Epson i1600 Heads
Print Resolution 1440 dpi 2400 dpi 1440 dpi 2400 dpi
Ink Color CMYK CMYK +W CMYK CMYK +W
Printing Speed 2 minutes for one T-shirt
Print Head Adjustable Height 10 cm MAX
Printing Size 30 x 40 cm MAX 40 x 60 cm MAX
Print  Direction Intelligence double side
Print  Method Micro piezo print technology,intelligence drops transformation technology
Height Adjust Electric
Distance of Print Head Printing 1-3 mm (2 mm is the best)
Ink Supply System CISS
Ink Consumption 15-20 ml / squre meter (1 liter print about 300PCS T-shirt)
Min Ink Drop Size < 1.5 PL
Interface USB 3.0
Rip Software Maintop(Standard)/ FlexiPrint(Optional)
Normal Working Environment Temperature 18-30 Celsius, Humidity 30-70 RH, Clean room, Low dust, Less sun light
Power AC 110/ 220V, 50/ 60Hz, 300W
Size&Weight Machine L820*W740*H560 mm/82KG L1070*W860*H560mm/110KG
Packing L900*W840*H710 mm/100KG L1150*W950*H680mm/140KG

Application

application images
application images
application images
application images
application images
application images
