Dye Sublimation Printer WJ-1260S image Dye Sublimation Printer WJ-1260S image

You may want to print on transfer paper to press image on to many items like T-shirt, Cup, Caps etc. Then the WJ-1260 sublimation printer is your choice. It prints with dye sublimation ink perfectly with outstanding speed and ultra high print quality.

overview images

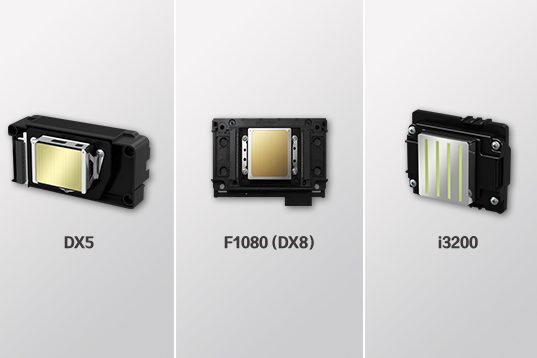

Epson i3200, F1080(DX8),DX5 Printheads available.  Meet the requirement of different clients.

overview images

Integrated Temperature Control

Why it matters : Control the front, middle and rear heater in one place. Integrated heater controller have less fault than separate ones.

overview images

Modular Printhead Connecting Component

Modular component design for the connection of printhead and ink supply system, makes the printhead installation, cleaning and replacing to be quite convenient.

overview images

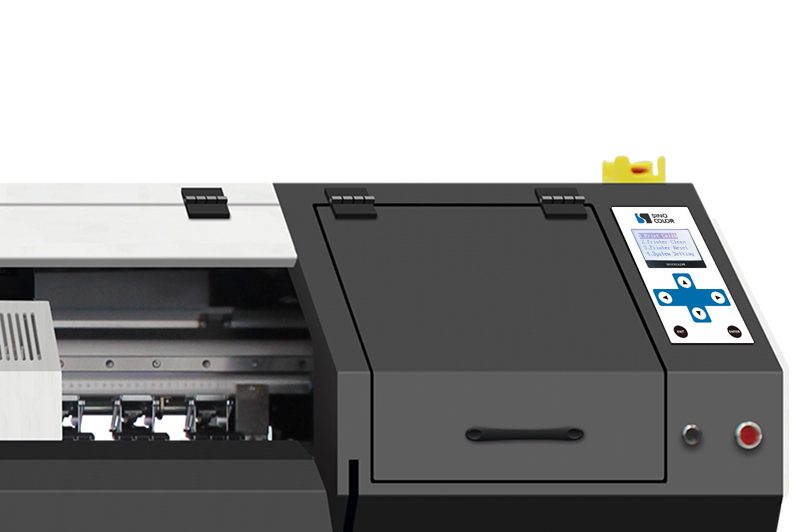

Big Functional Control Panel

Adopts the latest program Intelligent Error Auto-Detection boards, it can guide user to find solution very quickly.

overview images

Wide Pinch Roller

Why it matters : Wide pinch roller keeps smooth movement of the media. And it has proper pressure to ensure accurate media step while not make any footprint of the pinch roller.

overview images

Megadyne Belt. High quality and  durable

overview images

Anti-collision Function

Anti-collision system is equipped to protect the printhead and carriage all the time

overview images

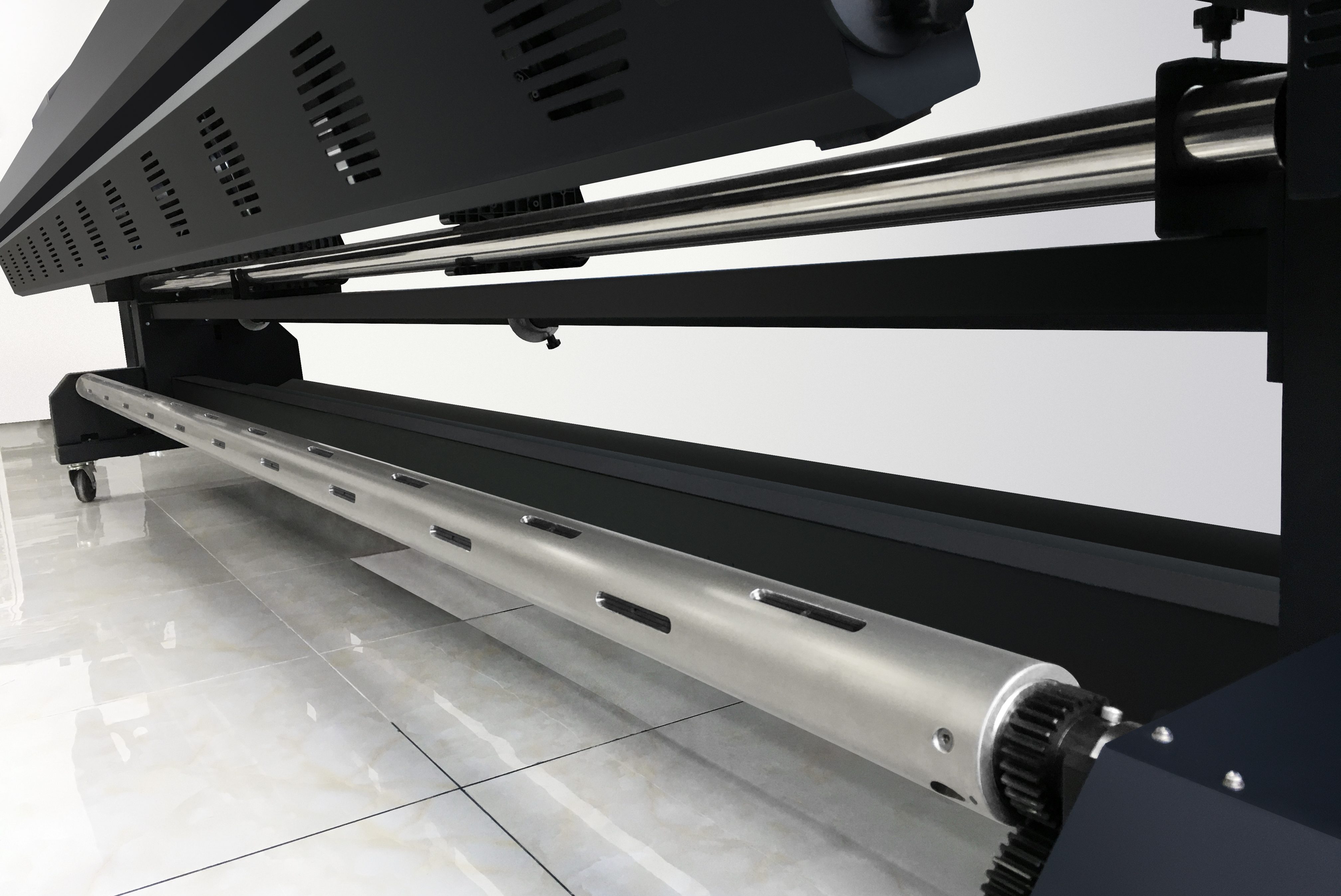

Tension Take-up System With Inflatable Bar (Optional)

It gives material a continuous and balanced pulling strength to assure a perfect material collecting, it is specially good for thin and soft type material like fabric, ceiling film etc.

overview images

IGUS Drag Chain from Germany

Why it matters : IGUS drag chain itself is a guarantee of quality, takes the printer stability to a new level.

overview images

Heating and Drying System

Front and middle and rear heating system, frond drying fan are standard equipped to help dry the printed material fast.

overview images

Aluminum Moulding Frame

Increase machine accuracy and extend machine durability

overview images

Double Slider

Why it matters : Since the double heads printer has wider carriage, double slider is necessary to ensure stable movement of the carriage.

overview images

Variable Dot Print Technology

Permitting the printer to provide smooth gradations, exceptional solid colors and optimum image quality in all print modes

Application

application images
application images
application images
application images
application images
application images

You may want to print on transfer paper to press image on to many items like T-shirt, Cup, Caps etc. Then the WJ-1260 sublimation printer is your choice. It prints with dye sublimation ink perfectly with outstanding speed and ultra high print quality.

Model NO. WJ-740S WJ-1260S
Printhead 2 / 3 Epson i3200 2 / 3 Epson i3200
Resolution(dpi) 2400 dpi max 2400 dpi max
Media Width 1.8 meter 3.2 meter
Types Heat Transfer Paper
Ink Color C M Y K
Ink Type Sublimation Ink
Speed Draft 42 ㎡/h (Two Heads) 46 ㎡/h (Two Heads)
Production 32 ㎡/h (Two Heads) 34 ㎡/h (Two Heads)
High Quality 24 ㎡/h (Two Heads) 26 ㎡/h (Two Heads)
Cleaning System Automatic Cleaning, Anti-Clogging Flash Function & Capping System
Heating System Pre / Middle / Post heating syste & IR heater
Drying System Equipped
Feeding & Take up Standard Equipped
Rip Software MainTop(Standard) / FlexiPrint(Optional)
Interface USB 3.0
Power AC 110/ 220V, 50/ 60Hz, 2700W AC 110/ 220V, 50/ 60Hz, 4000W
Size&Weight Machine L3130×W710×H1380 mm / 280KG L4530×W710×H1395 mm / 500KG
Packing L3210×W1000×H740 mm / 400KG L4610×W1000×H740 mm / 640KG

Application

application images
application images
application images
application images
application images
application images
