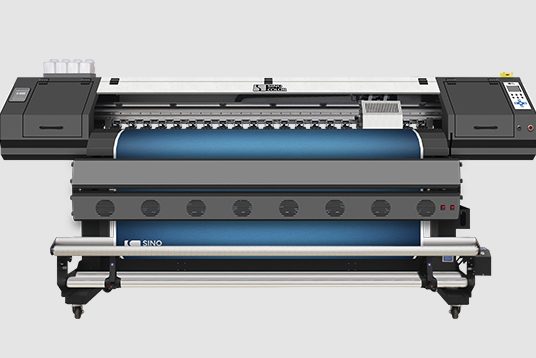

Dye Sublimation Printer WJ-740P image

You may want to print on transfer paper to press image on to many items like T-shirt, Cup, Caps etc. Then the WJ-740 sublimation printer is your choice. It prints with dye sublimation ink perfectly with outstanding speed and ultra high print quality.

overview images

Different Model of Printheads Are Available

Epson F1080(DX8),DX5, i3200 Printheads available.  Meet the requirement of different clients.

overview images

Integrated Temperature Control

Why it matters : Control the front, middle and rear heater in one place. Integrated heater controller have less fault than separate ones.

overview images

Heating and Drying System

Front and middle and rear heating system, frond drying fan are standard equipped to help dry the printed material fast.

overview images

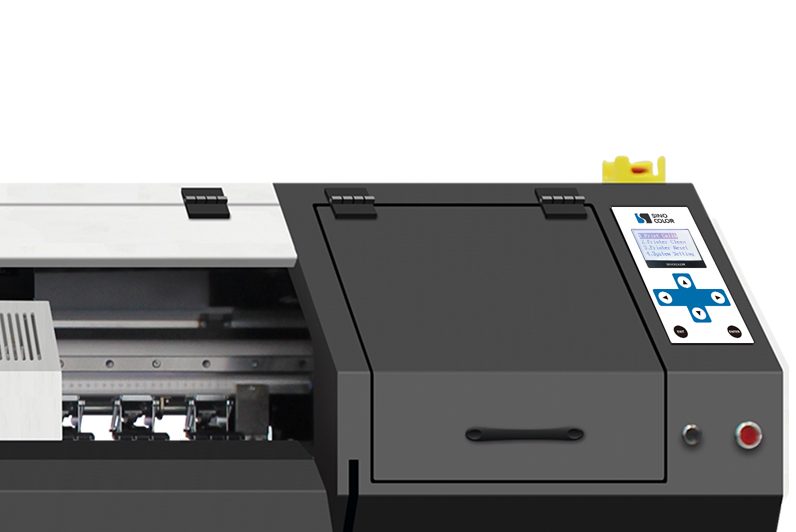

Big Functional Control Panel

Adopts the latest program Intelligent Error Auto-Detection boards, it can guide user to find solution very quickly.

overview images

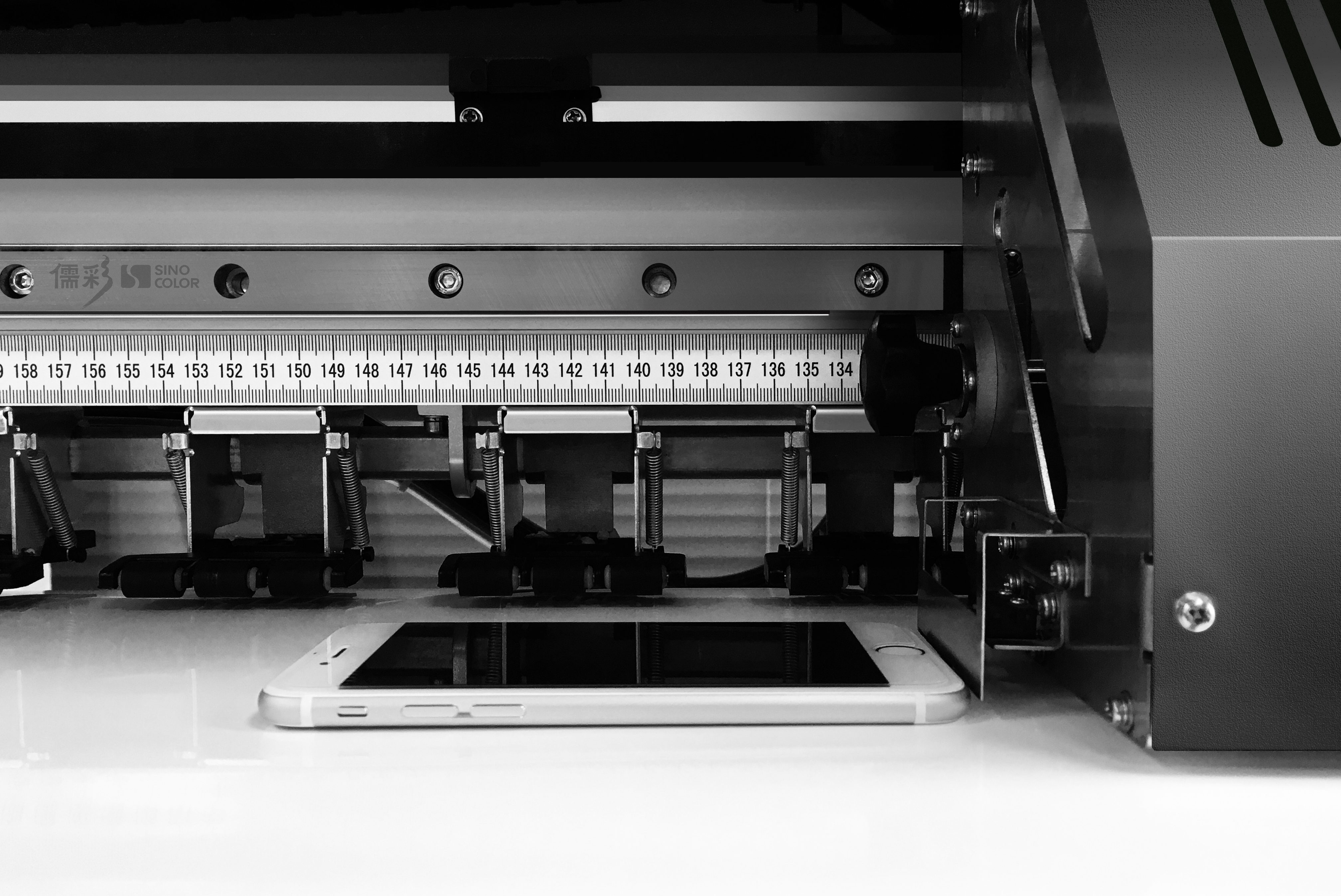

Anti-collision Function

Anti-collision system is equipped to protect the printhead and carriage all the time

overview images

Wide Pinch Roller

Why it matters : Wide pinch roller keeps smooth movement of the media. And it has proper pressure to ensure accurate media step while not make any footprint of the pinch roller.

overview images

Megadyne Belt. High quality. Durable

overview images

Integrated Take Up System (Optional)

It offers adjustable roll widths, making it suitable for various sized media rolls and applications

overview images

IGUS Drag Chain from Germany

Why it matters : IGUS drag chain itself is a guarantee of quality, takes the printer stability to a new level.

overview images

Aluminum Moulding Frame

Increase machine accuracy and extend machine durability

overview images

Double Slider

Why it matters : Since the double heads printer has wider carriage, double slider is necessary to ensure stable movement of the carriage.

overview images

Variable Dot Print Technology

Permitting the printer to provide smooth gradations, exceptional solid colors and optimum image quality in all print modes

overview images

LED lamp strip is Equipped

Users could check out the print result more easily

APPLICATION

application images
application images
application images
application images
application images
application images
Model NO. WJ-740 WJ-740C WJ-740P
Printhead 2 x Epson DX5 2 / 3 Epson DX8 2 / 3 Epson i3200
Resolution(dpi) 1440 dpi  2400 dpi



Media

Width 1.8 Meter(74 Inch)
Height 2-6mm (Adjustable)
Types Heat Transfer Paper
Ink Color C M Y K  C M Y K / C M Y K Lc Lm C M Y K
Ink Type Sublimation Ink / Waterbased Dye Ink



Speed

4 Pass 30 sqm/h 32 sqm/h (Two Heads) 42 sqm/h (Two Heads)
6 Pass 22 sqm/h 24 sqm/h (Two Heads)  32 sqm/h (Two Heads)
8 Pass 16 sqm/h 18 sqm/h (Two Heads)  24 sqm/h (Two Heads)
Ink Supply System Low Ink Detector, Auto Ink Supply System
Media Feeding Automatic Media Feeding(Max Media Weight 80KG)
Cleaning System Automatic Cleaning, Anti-Clogging Flash Function & Capping System
Heating System Pre/Middle/Post Heater Equipped. Infrared Heater is optional
Drying System Equipped
Environment Temperature: 20-28°C, Humidity: 40-60%
Rip Software MainTop (Standard), PhotoPrint (Optional)
Interface USB3.0
Power AC220V, 50/60Hz



Size&Weight

Machine L2960mm W800mm H1270mm / 280KG
Packing L3060mm W900mm H700mm / 400KG
