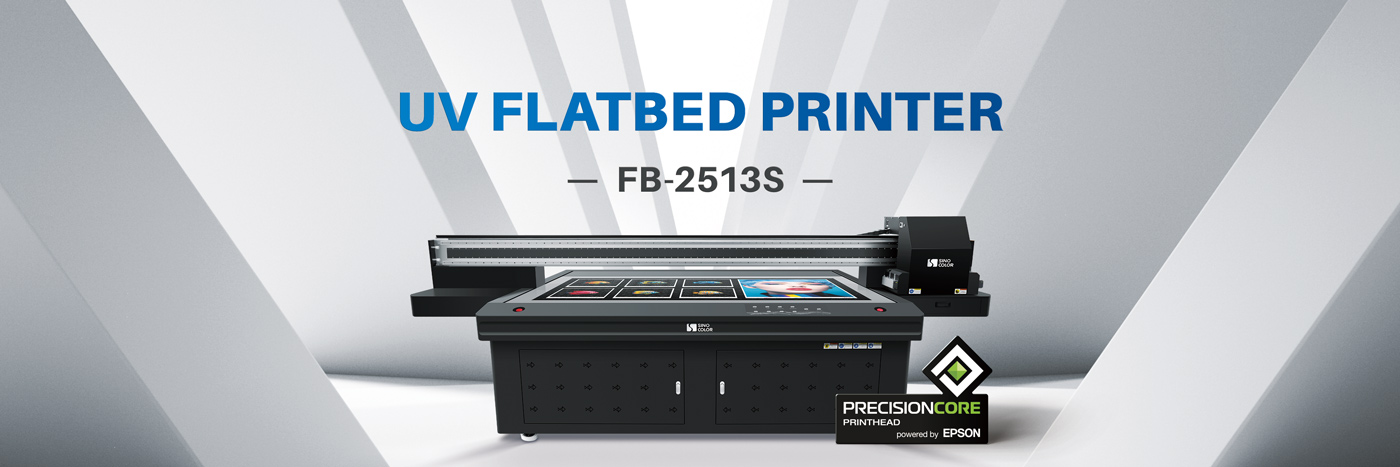

UV Flatbed Printer FB-2513S image UV Flatbed Printer FB-2513S image

With the capability to print onto thick substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use. FB-2513S UV flatbed printers are ideal for applications such as backlit displays and signage, signs and posters, interior décor, glass and metal decorative panels and more.

overview images

Equipped with latest Epson industrial printhead i3200-U. High productivity choice

overview images

Double built-in high-power independent vacuum pump. Guarantee the powerful suction.

overview images

User-friendly projecting touch screen. Make the operation to be at your fingertips.

overview images

Negative Pressure System

Equipped with two advanced separate negative pressure systems (One for color and varnish, One for white). Stabilize the air pressure inside the ink supply system, one button to fill the ink. Simply and effectively ensure the continuous ink flow, assure the maintenance of multi-heads equipment to be easy as well.

overview images

Consistent design of double guide rail (THK), guarantee the stable movement of carriage.

And one-time molding aluminum beam that ensure the high accuracy of each carriage movement.

overview images

Built-in media alignment pins, guarantee the quick, simple and high precision media positioning.

overview images

Modular Printhead Connecting Component

Modular component design for the connection of printhead and ink supply system, makes the printhead installation, cleaning and replacing to be quite convenient.

overview images

Divide the vacuum table to 4 zones. Concentrate energy, Save energy.

overview images

Anti-collision system is equipped to protect the printhead and carriage all the time

overview images

Quality anti-static device is optional. eliminate static efficiently and reliably from printer and the media. Gurantee the high precision output.

overview images

Automatic media height detecting system is equipped, provide great help for setting the proper print height.

overview images

Advanced magnetic levitation transmission is available (optional). Easy to clean, durable. Built for fast, stable, and long-term running.

overview images

Oxidation treated high precision platform. High resolution, easy to clean.

overview images

Branded circuit breaker to protect the safety of the whole electronic system.

overview images

Lack ink alarm system is equipped. Give LED light signal reminding operator to fill the ink. No interruption during printing job any more.

overview images

White ink stir system is equipped. Decrease the problems caused by white ink precipitation.

overview images

Screw rod type transmission for the Y axis. Guarantee the high precision of each printing.

overview images

High grade two-layer Germany Igus drag chain. Effectively protect ink tube and cables.

Application

application images
application images
application images
application images
application images
application images

With the capability to print onto thick substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use. FB-2513S UV flatbed printers are ideal for applications such as backlit displays and signage, signs and posters, interior décor, glass and metal decorative panels and more.

Model No. FB-2513S (Pro) FB-2513D (Pro)
Printhead Epson i3200-U Printheads Epson i1600-U Printheads
Number of Printheads 2/ 3/ 4/ 6/ 8 pcs optional
Resolution Max 2400 dpi
Media Thickness 12 cm MAX
Size 2500 x 1300 (mm)
Types Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC , PP, PE, PTFE Etc.
Speed Draft 50 sqm/h  ( CMYK, 4 heads ) 45 sqm/h  ( CMYK, 4 heads )
Production 32 sqm/h  ( CMYK, 4 heads ) 28 sqm/h  ( CMYK, 4 heads )
High Quality 24 sqm/h  ( CMYK, 4 heads ) 22 sqm/h  ( CMYK, 4 heads )
Ink Type UV Ink
Color CMYK/ CMYK + W/ CMYK + W + V/ CMYK + W + V + Pre-treating Liquid
Capacity 500 ML
Dry System UV_LED light system
Negative Pressure System Standard Optional
Rip Software MainTop (Standard) / FlexiPrint (Optional)
PC Operation System Windows 7/XP/10
Operation environment Temperature: 20-28℃, Humidity: 40%-60%
Power Supply AC 110/ 220V, 50/ 60Hz, 4800W
Image Format TIFF, JPEG, EPS, PDF…
Size Machine L4160 × W2130 × H1520 mm
Packing L4300 × W2280 × H1780 mm
Weight Machine 870 KG
Packing 1100 KG

Application

application images
application images
application images
application images
application images
application images
