UV Flatbed Printer FB-0906i/ FB-0906D image UV Flatbed Printer FB-0906i/ FB-0906D image

With the capability to print onto rigid substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use. FB-0906 UV flatbed printers are ideal for applications such as backlit displays and signage, signs and posters, interior décor, glass and metal decorative panels,promotion products, gift products, and more.

overview images

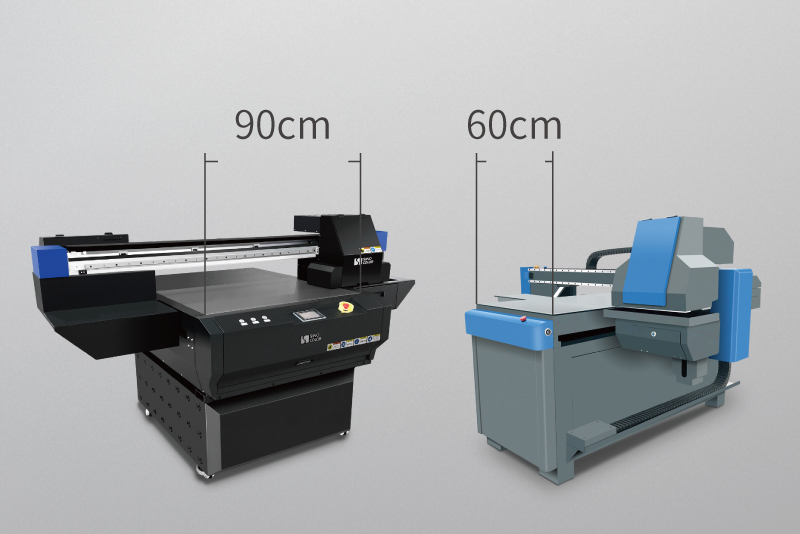

Designed X direction width set at 90cm instead of 60cm. Greatly reduce the pass number of each print work which will effectively increase the printing speed of same resolution.

overview images

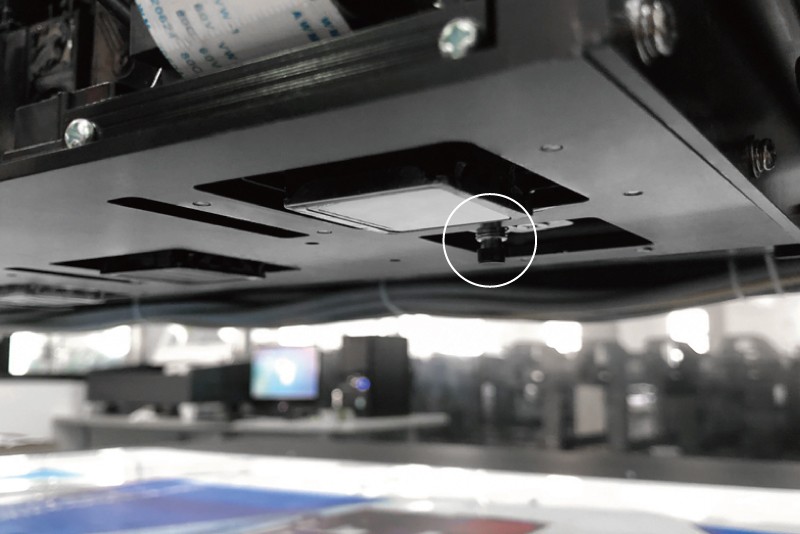

Automatic media height detecting system is equipped, provide great help for setting the proper print height.

overview images

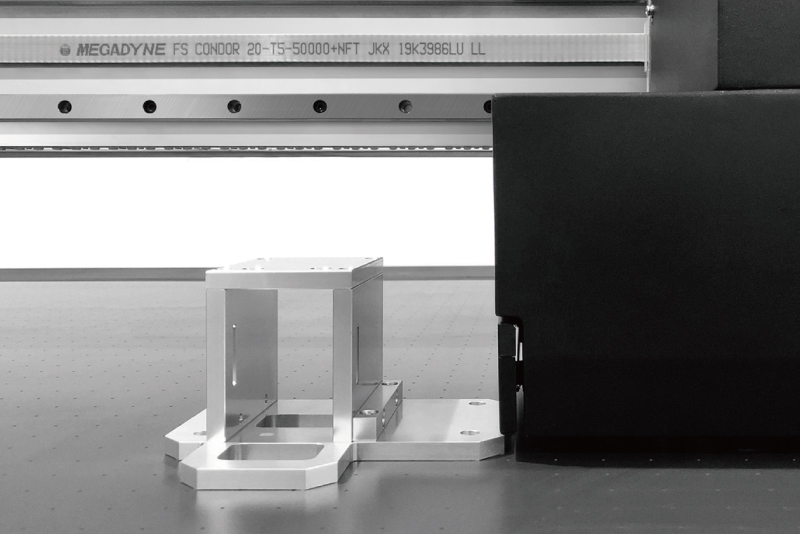

Anti-collision system is equipped, protect the printhead and carriage all the time.

overview images

Lack ink alarm system is equipped, gives LED light signal reminding operator to fill the ink. No interruption during printing job any more.

overview images

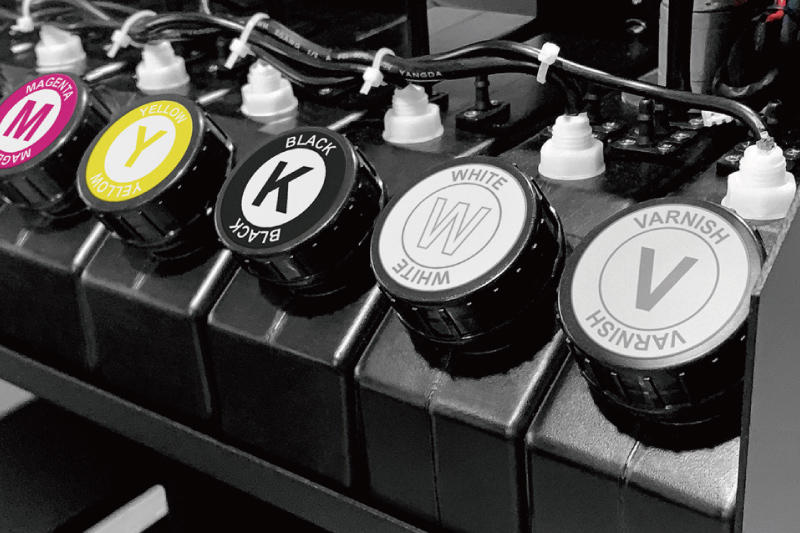

White ink stir system is equipped. Decrease the problems caused by white ink precipitation.

overview images

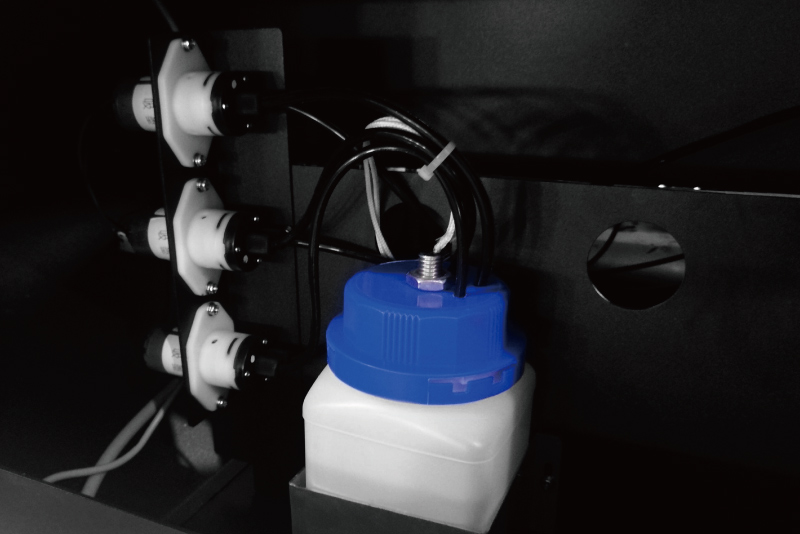

Newly designed waste ink collecting system, more functional, clean and tidy.

overview images

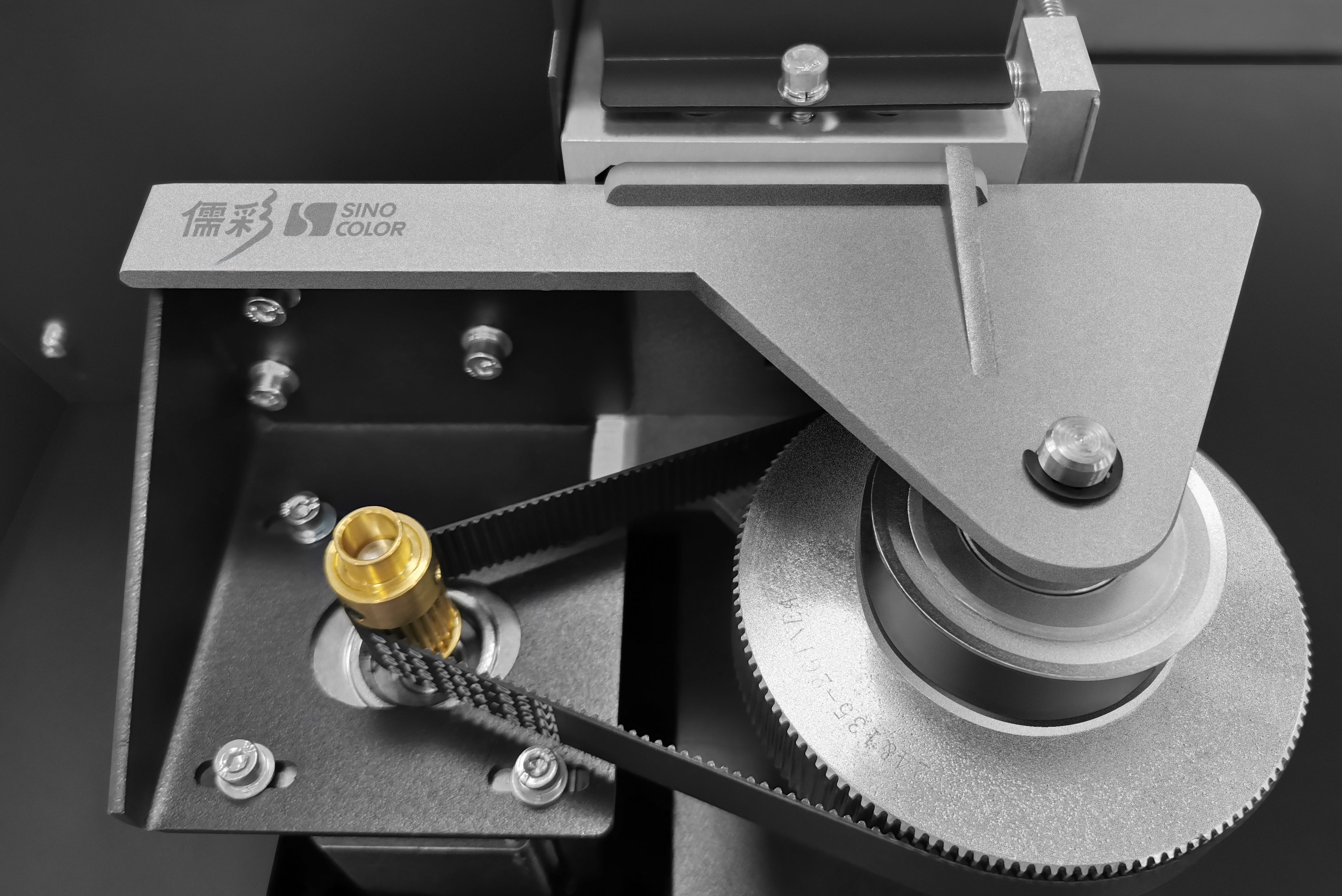

Triangular Aluminum Moulding Structure, increase machine stability and extend machine durability

overview images

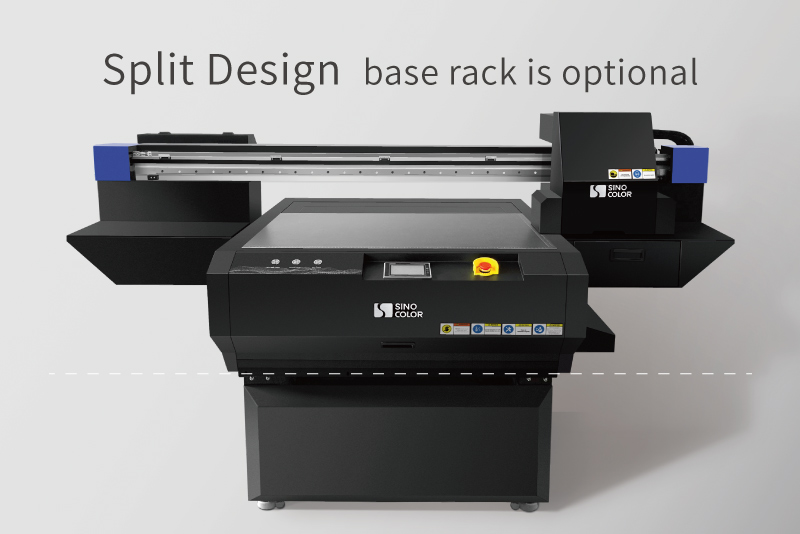

Printer and base rack using split design (base rack is optional). Compact and easy to place, greatly reduce the package size, save the transportation fee.

overview images

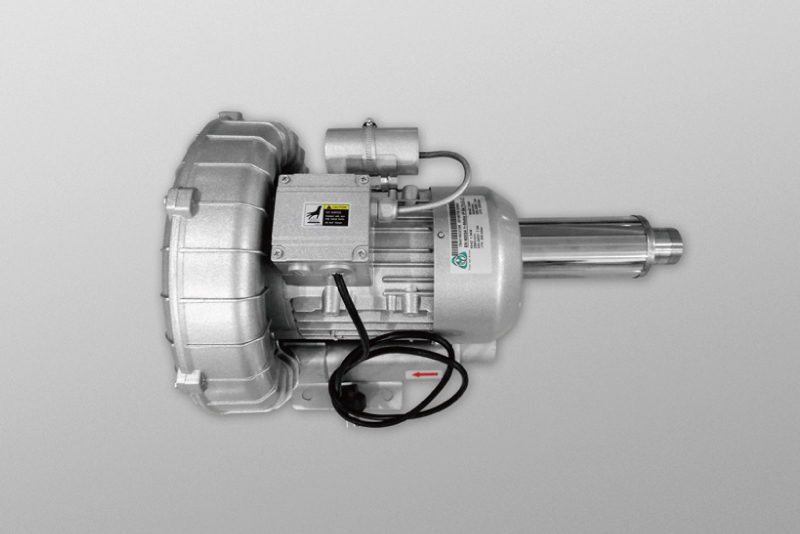

High-power independent vacuum system, much more practical and functional than the vacuum system with small-power internal vacuum fans.

overview images

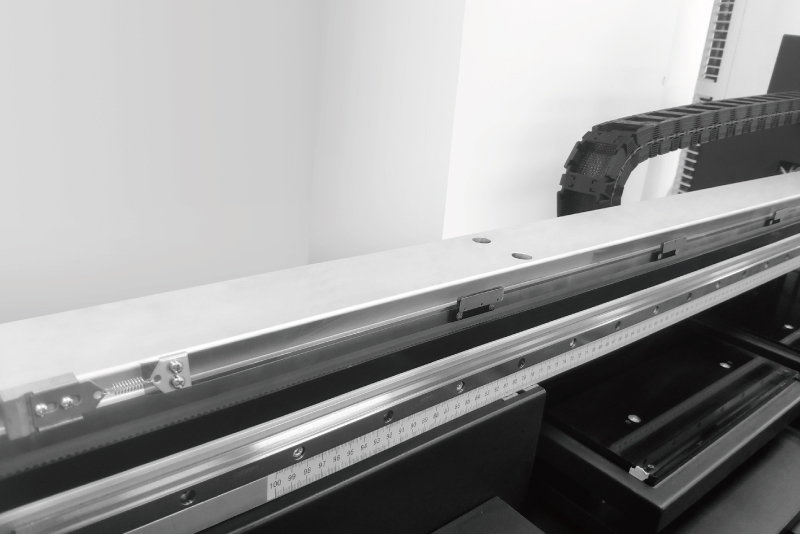

One-time molding aluminum beam, ensure the high accuracy of each carriage movement.

overview images

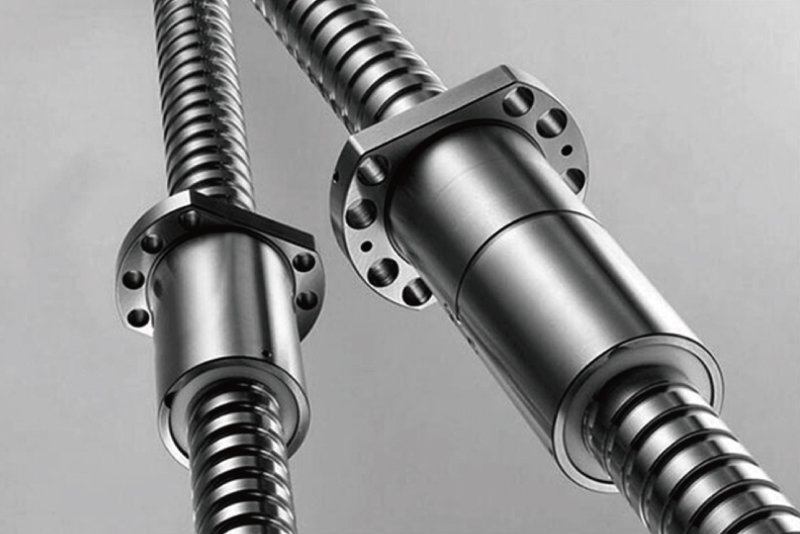

Screw rod type transmission for the Y axis, guarantee the high precision of each printing.

overview images

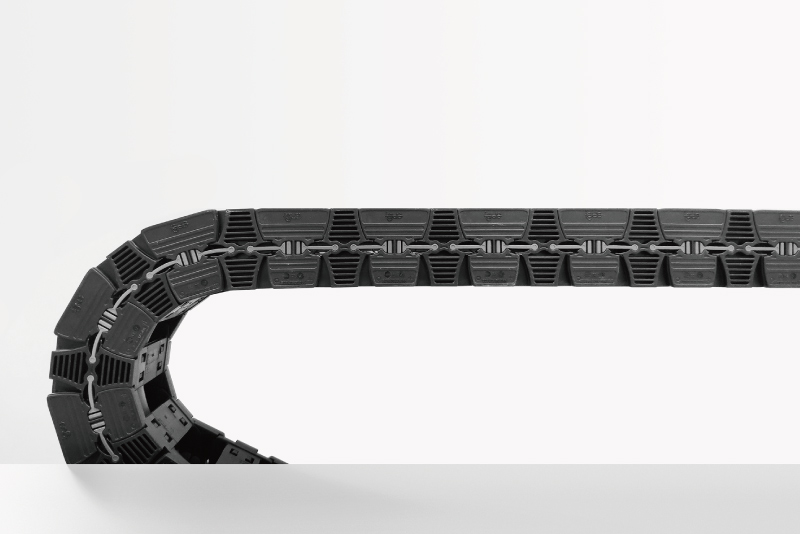

High grade two-layer Germany Igus drag chain. Effectively protect ink tube and cables.

overview images

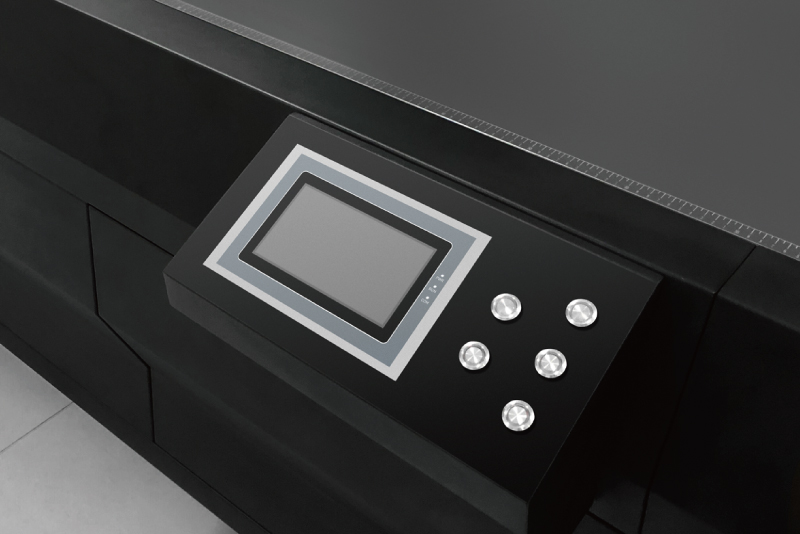

Well-designed touch screen. Easily adjust platform position and do the basic setting.

overview images

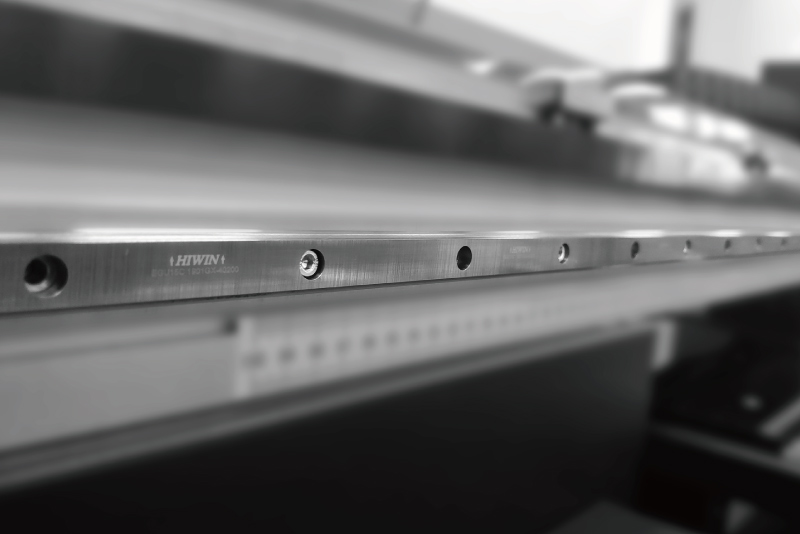

High quality branded guide rail. Build for long life use.

overview images

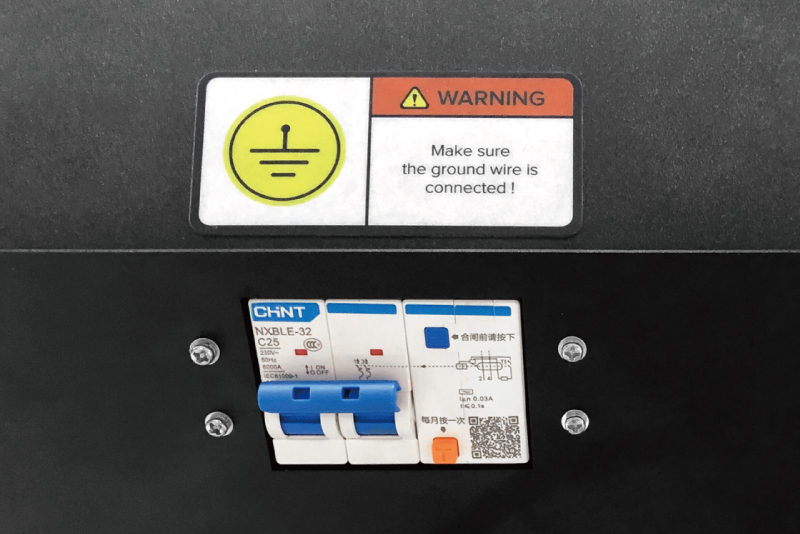

Branded circuit breaker. Protect the safety of the whole electronic system.

Application

application images
application images
application images
application images
application images
application images

With the capability to print onto rigid substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use. FB-0906 UV flatbed printers are ideal for applications such as backlit displays and signage, signs and posters, interior décor, glass and metal decorative panels,promotion products, gift products, and more.

Model No. FB-0906i Series FB-0906D Series
Printhead 2/3 Pcs Epson Heads 2/3/4 Epson i1600 heads
Resolution 1440 dpi 2400dpi
Media Thickness 12 cm MAX
Size 900 x 600 (mm)
Types Glass, Acrylic, Ceramic, Metal, DTF Crystal sticker, Paper, Wood, Leather, PVC, PP, PE, PTFE Etc.
Speed Draft 6 min for A1 full size 3 min for A1 full size
Standard 12 min for A1 full size 6 min for A1 full size
Quality 18 min for A1 full size 9 min for A1 full size
Ink Type UV Ink
Color CMYK / CMYK+W / CMYK+W+V / CMYK+W+V+Primer /CMYK+W+V+Fluorescent Color or Primer
Capacity 500 ML
Dry System UV_LED light system
Rip Software MainTop (Standard) / FlexiPrint (Optional)
PC Operation System Windows 7/XP/10
Operation environment Temperature: 20-28℃, Humidity: 40%-60%
Power AC 110/ 220V, 50/ 60Hz, 1800W
Image Format TIFF, JPEG, EPS, PDF…
Size Machine L2150×W1360×H900 mm
Packing L2260×W1470×H1110 mm
Weight Machine 250 KG
Packing 350 KG

Application

application images
application images
application images
application images
application images
application images
