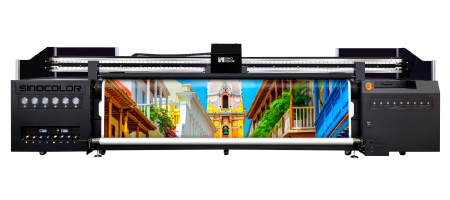

UV Hybrid Printer HUV-3200 Series image UV Hybrid Printer HUV-3200 Series image

For this new HUV-3200S series, with 4 zones high power electronic controlled vacuum platforms,tension type media feeding systems, advanced media alignment pins, 3 press bards…. Guarantee the high precision stepping, and high quality printing result for both rigid and soft material. What’s more, the industrial level Epson i3200-U heads, powered the machine to be super fast. The negative pressure system, make the machine maintenance to be a piece of cake.

overview images

Equipped with Epson latest industrial level i3200-U printheads, powered by advanced PrecisionCore technology, guarantee the high resolution, high efficiency and high stability production.

overview images

Equipped with two advanced separate negative pressure systems (One for color and varnish, One for white). Stabilize the air pressure inside the ink supply system, one button to fill the ink. Simply and effectively ensure the continuous ink flow, assure the maintenance of multi-heads equipment to be easy as well.

overview images

Well-designed machine structure, excellent for printing of both roll material, and regular rigid material.

overview images

Equipped with three sets pneumatic media press bar to cooperate with the well-designed media alignment pins component, guarantee the high accuracy media stepping during printing.

overview images

Advanced inflatable roller are applied to the media feeding and take-up system, perfectly meet the requirement of high precision printing of different types roll material

overview images

Independent design of the printer vacuum platform. Four vacuum zones are electronic controlled. Convenient, high efficiency, energy saving.

overview images

Elegant and sleek appearance design, not only an advanced printing equipment, but also a decoration for the company.

overview images

Integrated machine control centre. Convenient and high-efficiency.

overview images

Dual guide rail configuration, guarantee the stability of long time running.

overview images

Branded accessories are used for high attrition area. Greatly increased the lifetime and stability of the machine. For example, the Hiwin guide rail, German Igus drag chain, Italian Megadyne belt.

overview images

Ultra wide one-time molding aluminum beam. Ensure the high resolution printing.

overview images

Rigorous ink filtration design, Effectively avoid the impurities from going into the ink supply system.

overview images

Modular component design for the connection of printhead and ink supply system, makes the printhead installation, cleaning and replacing to be quite convenient.

overview images

Mature time-set stirring system for white ink, effectively decrease the problems caused by white ink precipitation.

overview images

Printer will automatically stop when the printhead carriage hit any unexpected object during working, and system memory function support continuing printing from the interruption part, reduce the material waste.

overview images

Movable and foldable front and back platforms are standard equipped. Convenient for storage.

overview images

Ultrawide LED Light Bar (optional Part)

Convenient for checking backlit material printing quality.

Application

application images
application images
application images
application images
application images
application images
application images
application images

For this new HUV-3200S series, with 4 zones high power electronic controlled vacuum platforms,tension type media feeding systems, advanced media alignment pins, 3 press bards…. Guarantee the high precision stepping, and high quality printing result for both rigid and soft material. What’s more, the industrial level Epson i3200-U heads, powered the machine to be super fast. The negative pressure system, make the machine maintenance to be a piece of cake.

Model No. HUV-3200K HUV-3200S HUV-2000S HUV-2000D
Printing Head 8×Konica KM1024i-13pl 2/3/4/8 Epson i3200-U 2/3/4/8 Epson i3200-U 2/4 Epson i1600-U
Resolution 1440 dpi 2400 dpi 2400 dpi
Media Width 3200 mm 2000 mm
Type Acrylic, PVC Board, KT Board, Cardboard, Canvas, Leather, Carpet, Vinyl, Paper, PP
Sheet, PVC, ABS …
Thickness 0-5 cm
Ink Type UV Ink
Color CMYK / CMYK+W / CMYK+W+V
Curing High Quality Water Cooling UV-LED Lamp
Speed Draft 86 ㎡/h (8 Heads) 75 ㎡/h (4 Heads) 56 ㎡/h (4 Heads) 51 ㎡/h (4 Heads)
Production 45 ㎡/h (8 Heads) 36 ㎡/h (4 Heads) 28 ㎡/h (4 Heads) 26 ㎡/h (4 Heads)
Quality 36 ㎡/h (8 Heads) 26 ㎡/h (4 Heads) 20 ㎡/h (4 Heads) 18 ㎡/h (4 Heads)
Ink Supply System Two advanced separate negative pressure systems (One for color and varnish, One for white).
Cleaning Press one button to flush the head automatically
Feed & TakeUp Automatic Media Feeding (Standard) & Take up System (Standard)
Rip Software MainTop (Standard)/ FlexiPrint (Optional)
Connector USB 3.0
Power AC 110/ 220V, 50/ 60Hz, 4500W AC 110/ 220V, 50/ 60Hz, 4200W
Size Machine L5500×W1530×H1520 mm L4240×W1520×H1470 mm
Packing L5600×W2030×H1710 mm L4350×W1830×H1710 mm
Weight Machine 1860 KG 1140 KG
Packing 2150 KG 1300 KG

Application

application images
application images
application images
application images
application images
application images
application images
application images
