UV Roll to Roll Printer UV-740D image UV Roll to Roll Printer UV-740D image

Our breakthrough UV technology addresses durability issues related to abrasion and solvents and also provides more effective, opaque white ink performance. This UV printing process is great for a very wide variety of commercial and industrial applications . The Epson series UV printer delivers flawless graphics and text at resolutions up to 2400dpi.

overview images

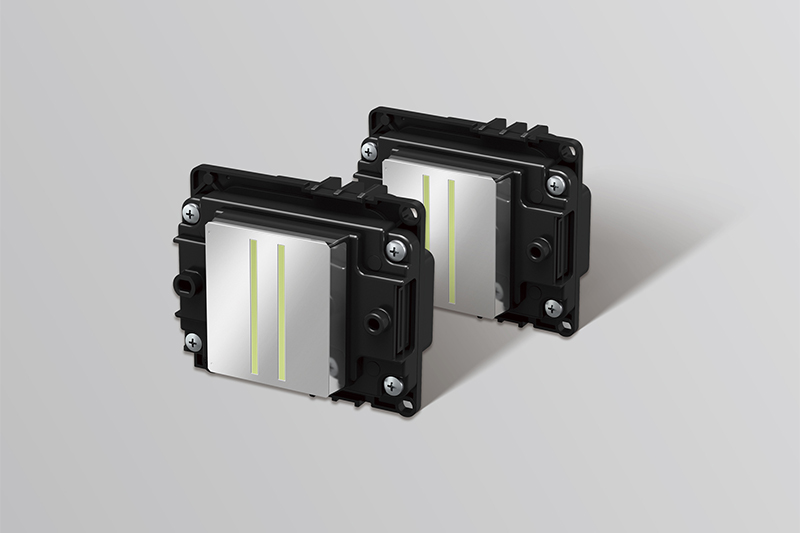

Epson i1600-U Printheads

Perfectly combined the hight speed and high quality printing effect.

overview images

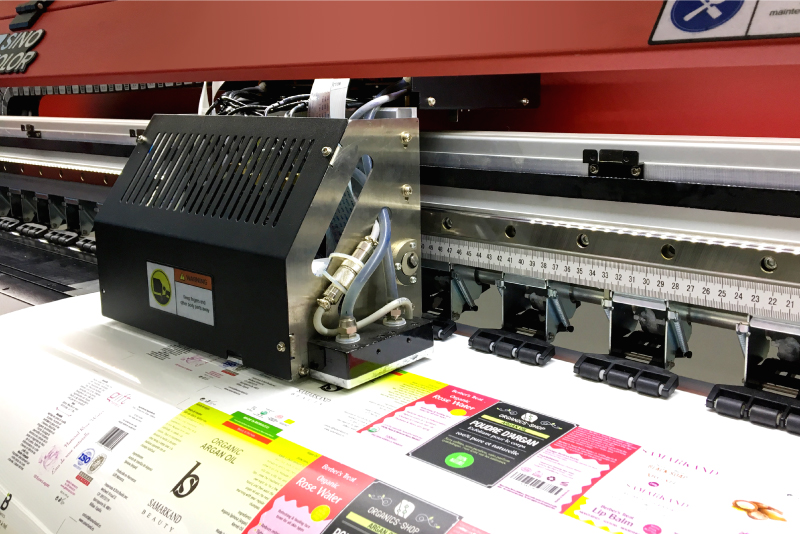

Water Cooling UV-LED Lamp

It is one of the world’s top UV-LED, long lifespan, low heat, and instant on-off

overview images

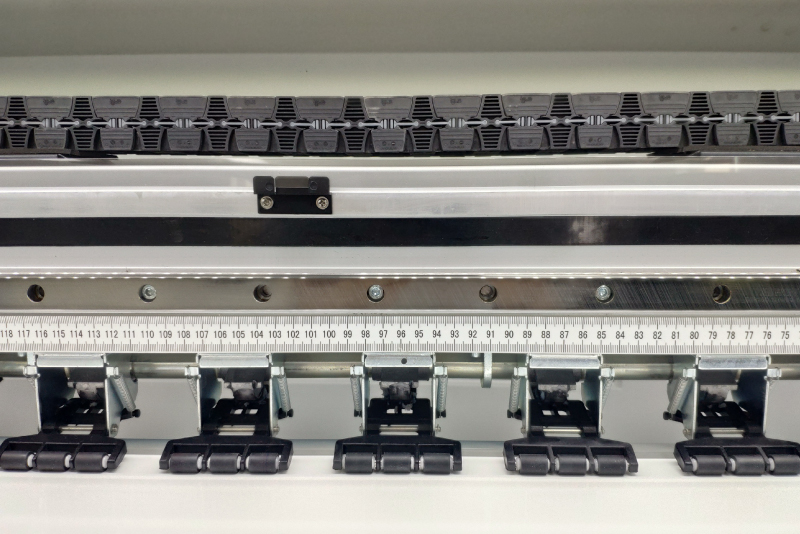

Wide Pinch Roller

Wide pinch roller keeps smooth movement of the media. And it has proper pressure to ensure accurate media step while not make any footprint of the pinch roller.

overview images

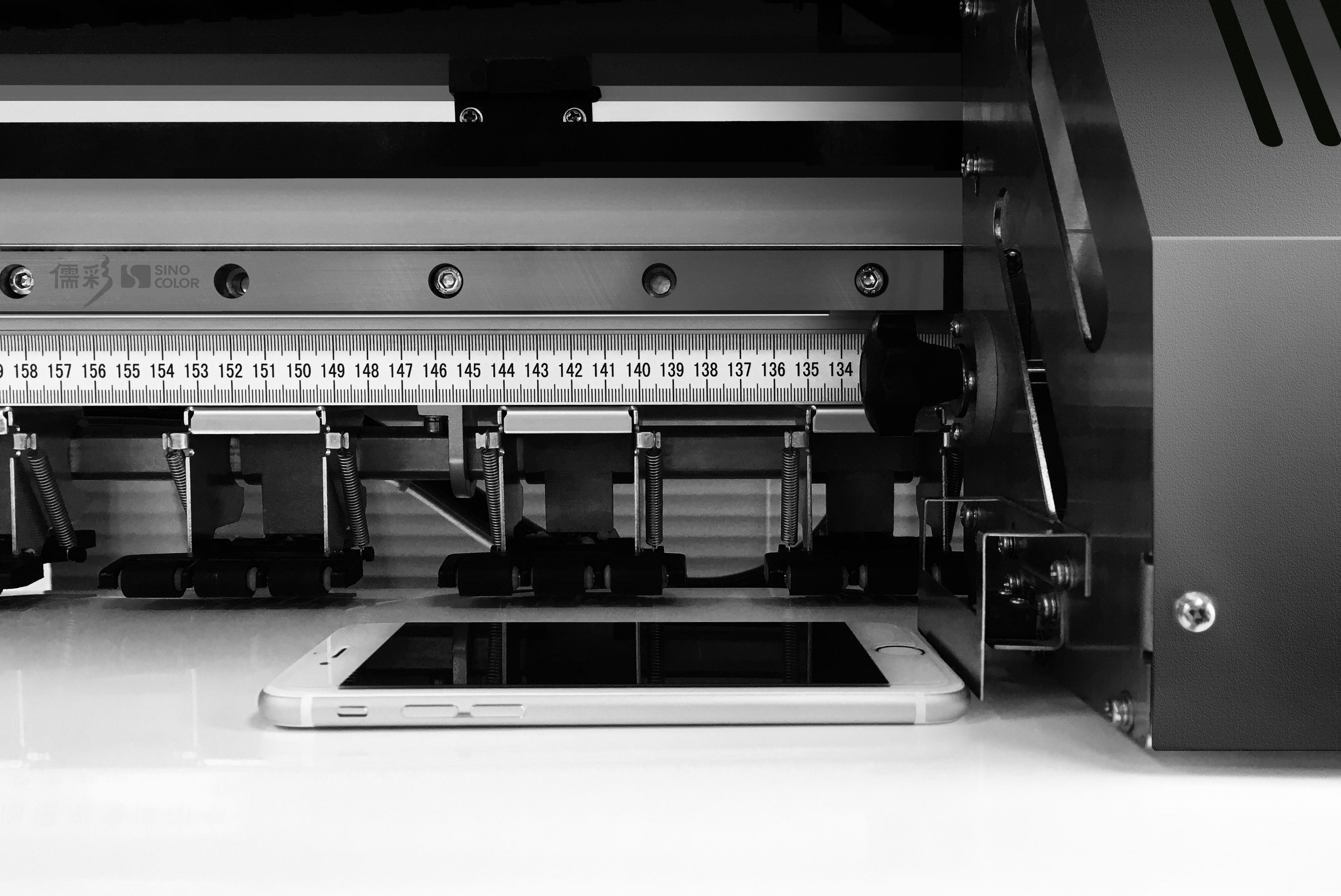

Anti-collision Function

Anti-collision system is equipped to protect the printhead and carriage all the time

overview images

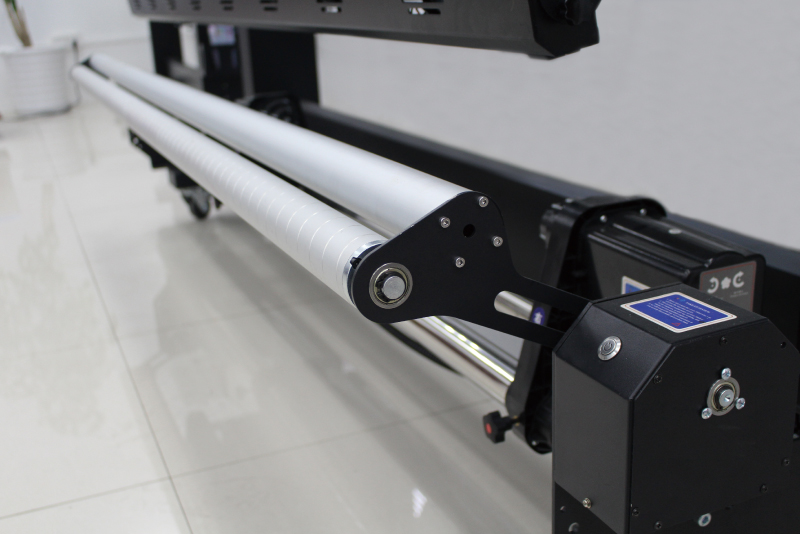

Integrated Take Up System (Optional)

It offers adjustable roll widths, making it suitable for various sized media rolls and applications

overview images

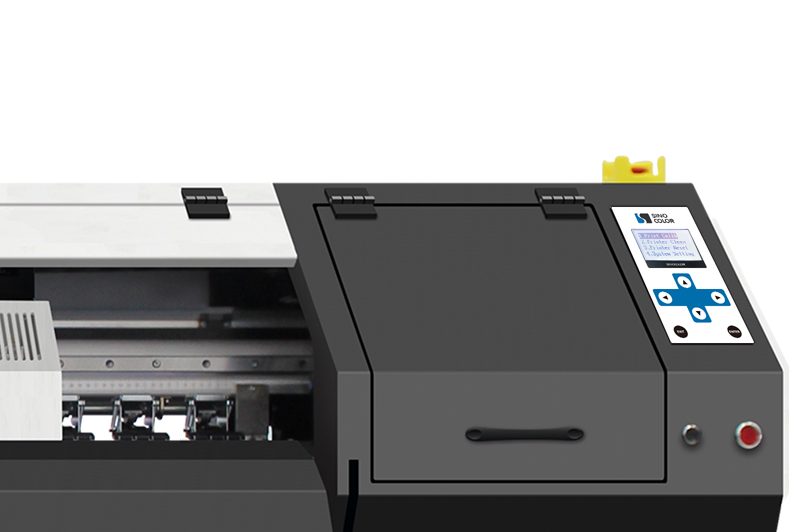

Big Functional Control Panel

Adopts the latest program Intelligent Error Auto-Detection boards, it can guide user to find solution very quickly.

overview images

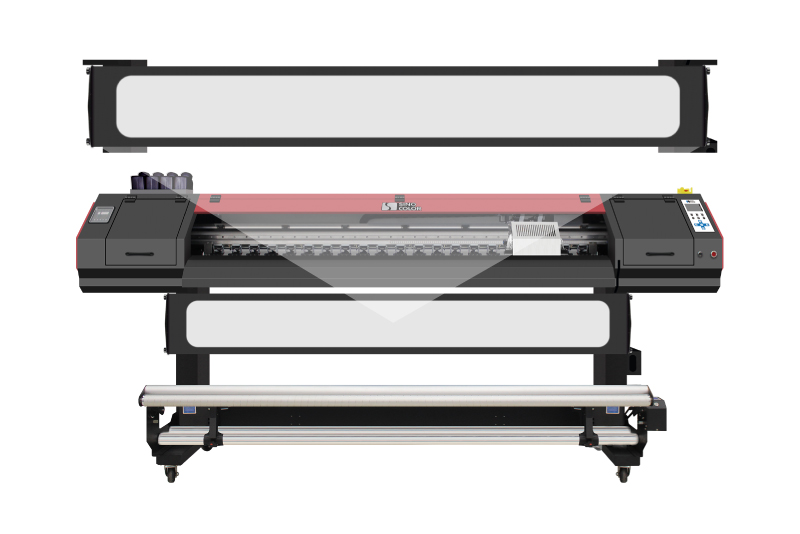

Ultrawide LED Light Bar (optional Part)

Convenient for checking backlit material printing quality.


overview images

Italian Megadyne Belt

High quality. Durable. Guarantee smooth movement of carriage.

overview images

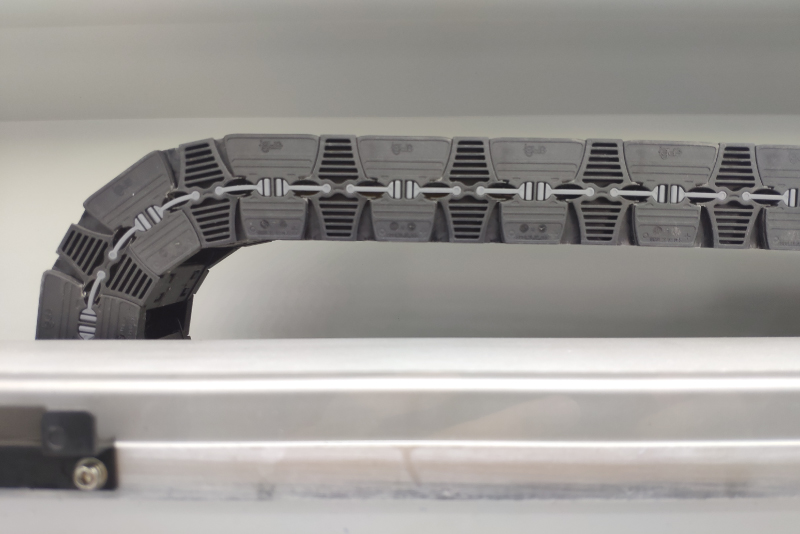

German IGUS Drag Chain

IGUS drag chain itself is a guarantee of quality, takes the printer stability to a new level.

overview images

Aluminum Moulding Frame

Increase machine accuracy and extend machine durability

overview images

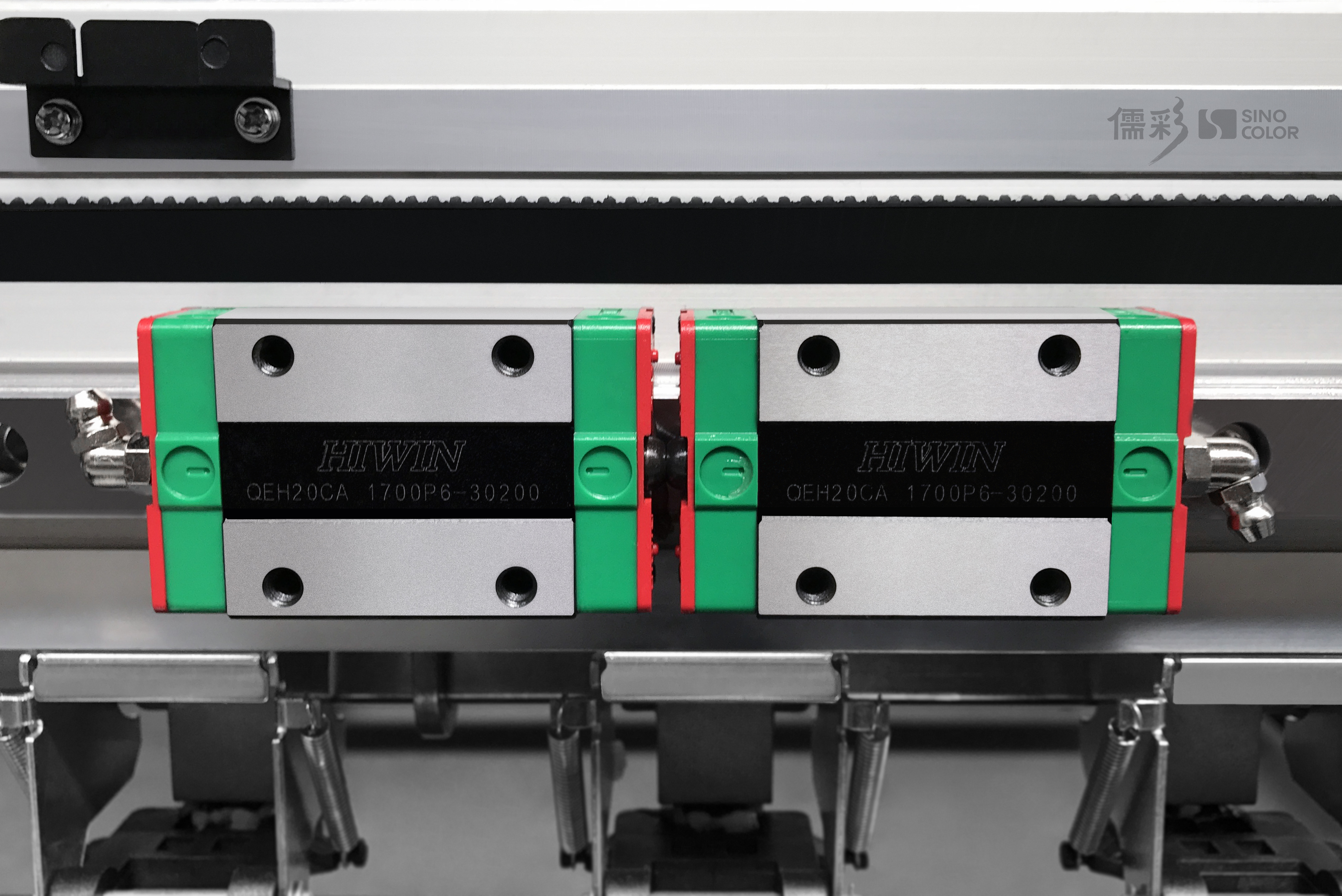

Double Slider

Since the double heads printer has wider carriage, double slider is necessary to ensure stable movement of the carriage.

overview images

Variable Dot Print Technology

Permitting the printer to provide smooth gradations, exceptional solid colors and optimum image quality in all print modes

overview images

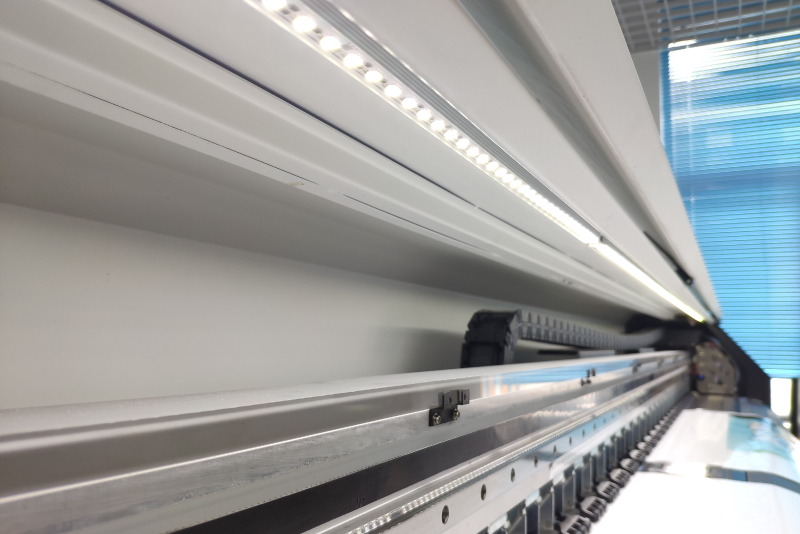

LED Lamp Strip

with the LED lamp strip, uses could check out the print result more easily


application images
application images
application images
application images
application images
application images
Model NO. UV-740D
Printhead 2 x Epson i1600-U
Resolution(dpi) 2400dpi



Width 1.8 meter
Types Flex Banner, Vinyl, Canvas, Garment, Leather, PET Film, Reflective Film, Soft Ceiling Film and a lot more flexible material…



Draft  40 sqm/h
Standard  20 sqm/h
Quality  12 sqm/h
Ink Color  CMYK / CMYK + W
Ink Type UV Curable Ink
Curing High Quality Water Cooling UV-LED Lamp
Cleaning Automatic Cleaning, Anti-Clogging Flash Function & Capping System
Feed & Take Up Automatic Media Feeding (Standard) & Take Up System (Optional)
Environment Temperature: 20-28°C, Humidity: 40-60%
Rip Software Maintop (Standard) / PhotoPrint (Optional)
Interface USB3.0
Power Machine 50/60Hz, 110/220V,1500W


Size & Weight

Machine L2760 W800 H1270(mm) /280KG
Packing L3060 W900 H700 (mm) / 350KG
