UV Rotary Printer URP-3015 image

With our technological innovation, this UV rotary printer is built to be one machine with high cost performance. And we will not need complicated screen printing any more. Can DIY any straight walled and tapered cylinders including thermal cup, stainless tumblers, ceramic basin,brush pot,etc by a more flexible way in volume printing.  1-3 minutes only for one printing (Exact time depends on the color needed, and printing size)

overview images

Full-color 360° Seamless Printing

Offers full-color 360° Seamless graphics with unparalleled print quality.

overview images

Angle Adjustable Design for
Tooling Fixture

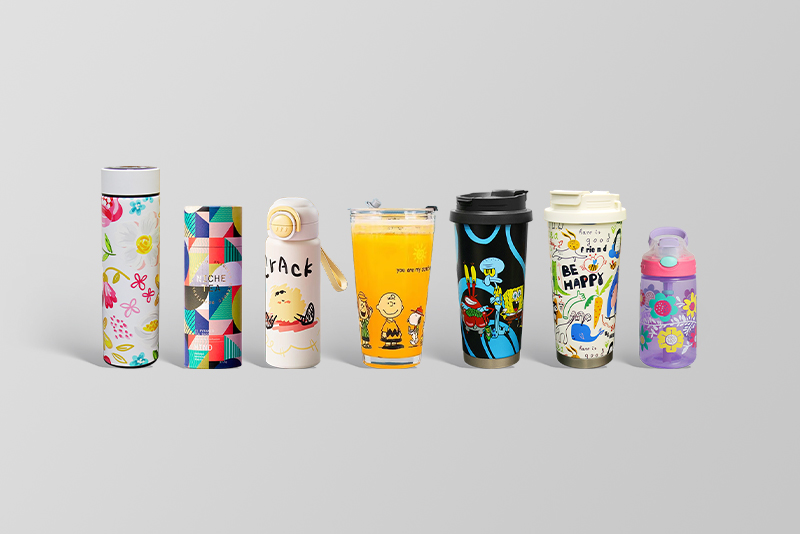

Enable the machine to print both straight walled and tapered cylinders including plastic bottles, stainless tumblers, candle holders and more. Meet the demands of wide variety of customers.

overview images

Triple Protection for The
Printheads

Printing object detecting sensor &
anti-collision system & UV light detecting sensors are equipped, to stop the machine when there is any mis-operation. Protect the printheads all the time.

overview images

Segmented Software-Controlled
UV Curing Unit

Segmented software-controlled UV curing unit for optimal curing.

overview images

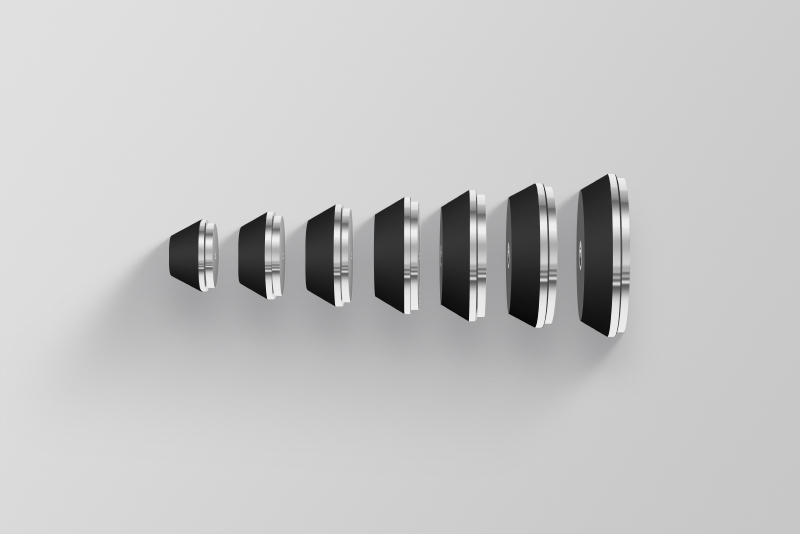

Various Tooling Fixture Support
Printing

Various Tooling Fixture Support Printing height to be 8-30cm. And caliber to be 5-15cm.

overview images

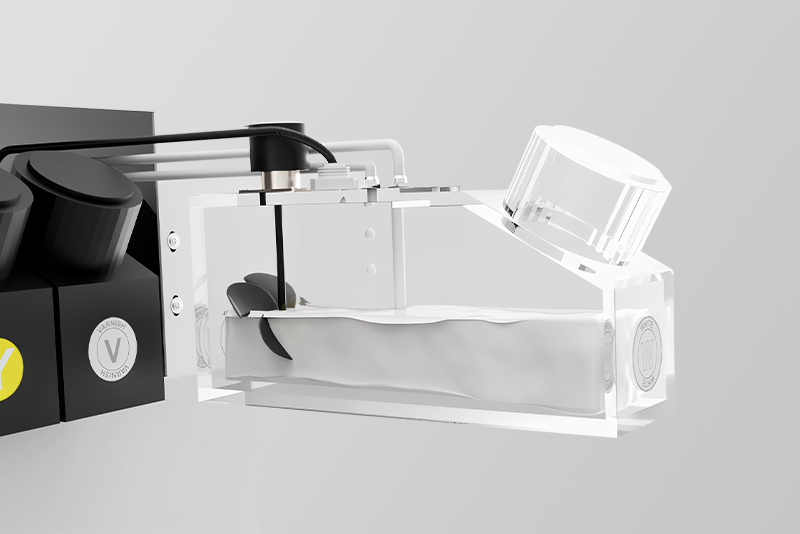

White Ink Stirring System

Mature time-set stirring system for white ink, effectively decreases the problems caused by white ink precipitation.

overview images

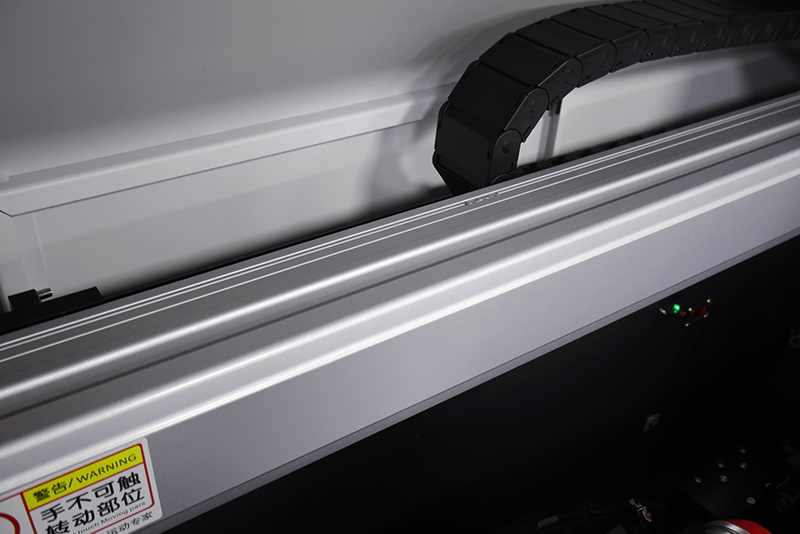

Branded Parts

Branded accessories are used for high attrition area.Greatly increased the lifetime and stability of the machine. For example, German lgus drag chain, high precision screw drive, ultra high precision aircraft-grade aluminum beam.

overview images

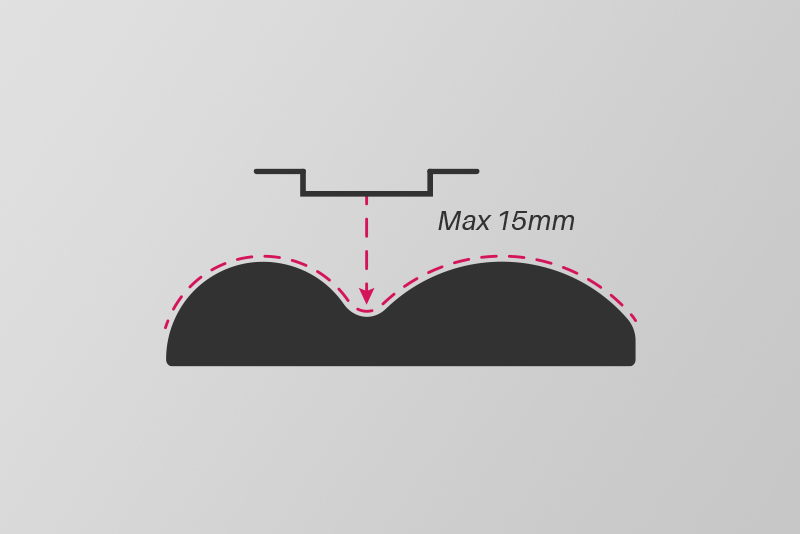

High-drop Printing Available

Support the high-drop UV printing (optional), enable the printing of bottle even with curved surface.

overview images

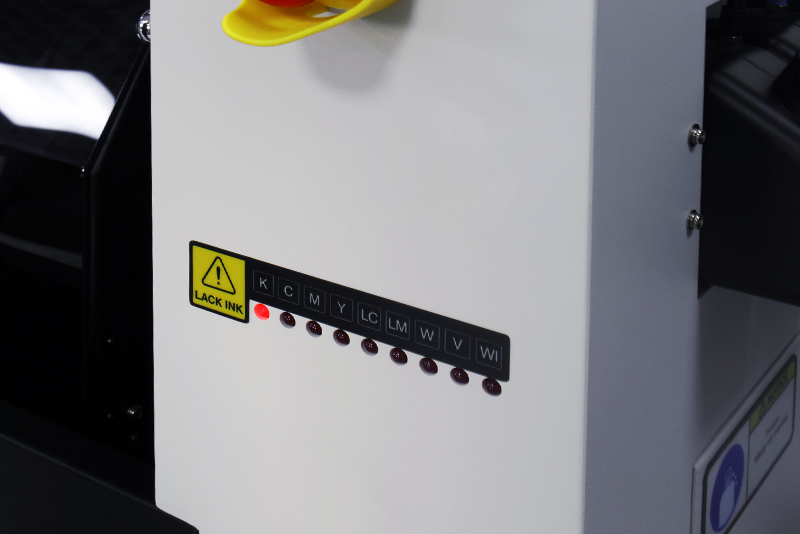

Lack of Ink Alarm

Gives LED light signal. Reminding operator to fill the
ink. No interruption during printing job any more.

overview images

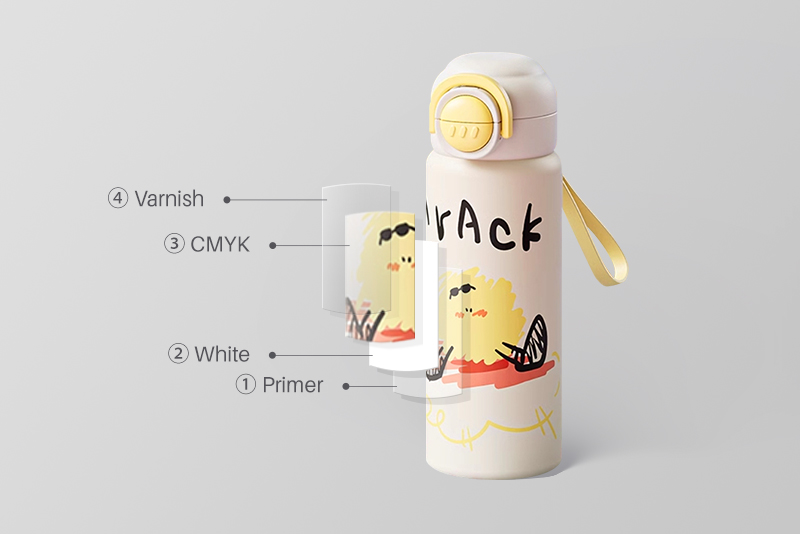

Print the Primer On Demand

Except regular CMYK+W+V, support to print the primer for metal/glass bottle on demand. Time saving, labor saving,environment friendly, and no pre-treating trace on blank area then ensure the high quality printing output.

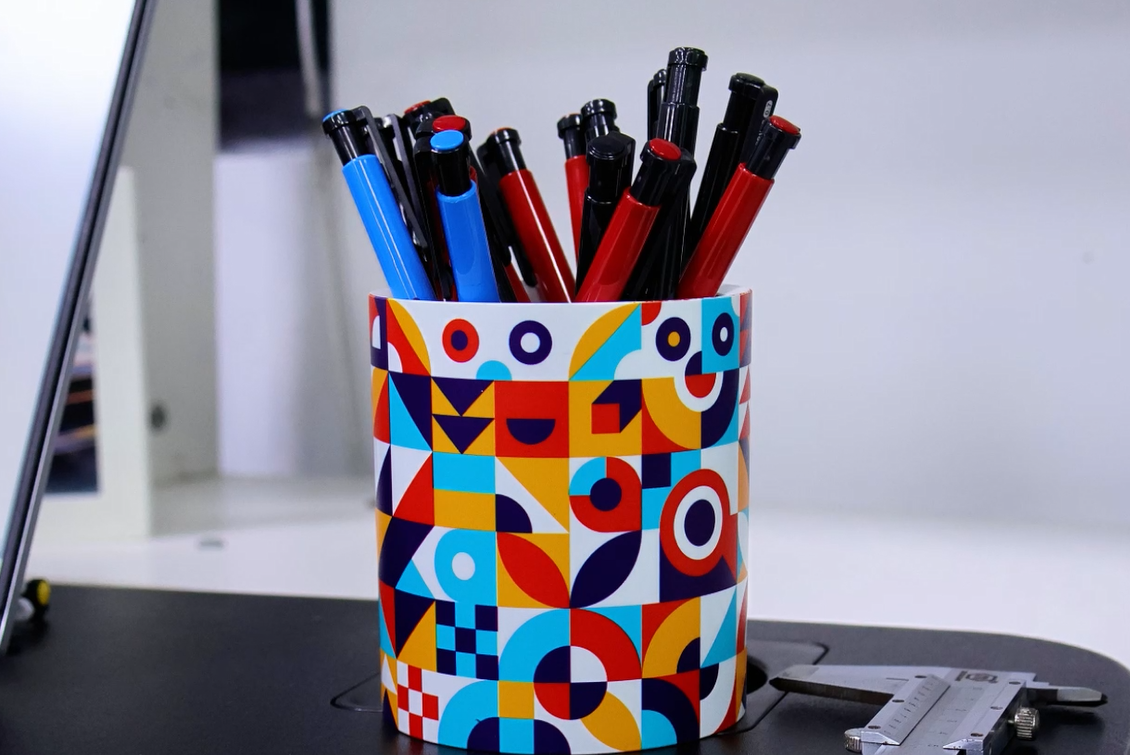

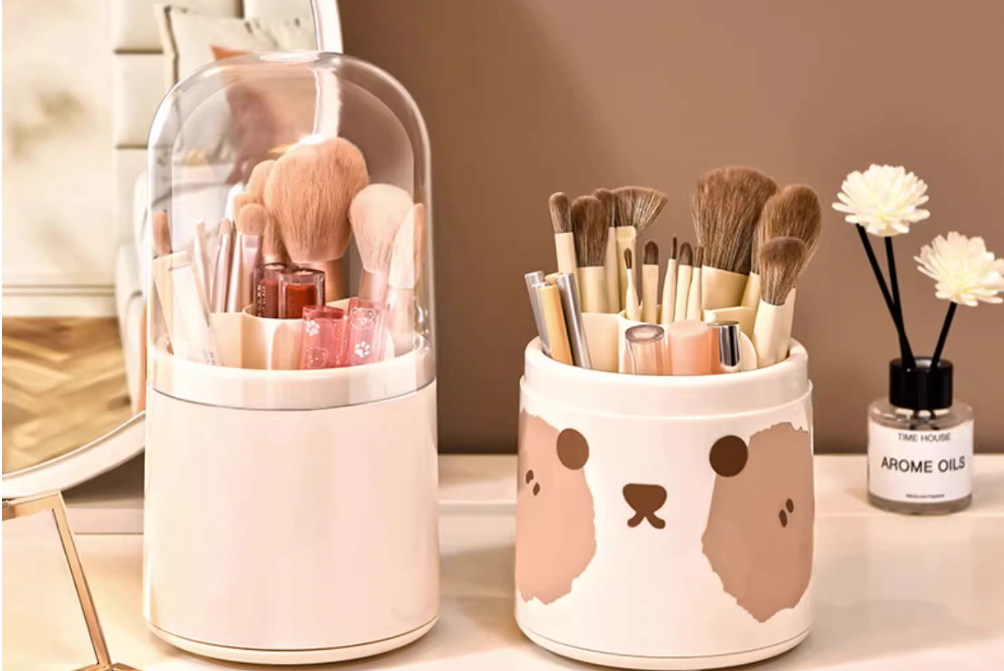

Application

application images
application images
application images
application images
application images
application images

With our technological innovation, this UV rotary printer is built to be one machine with high cost performance. And we will not need complicated screen printing any more. Can DIY any straight walled and tapered cylinders including thermal cup, stainless tumblers, ceramic basin,brush pot,etc by a more flexible way in volume printing.  1-3 minutes only for one printing (Exact time depends on the color needed, and printing size)

Model No. URP-3015X URP-3015D URP-3015G
Printhead Epson Heads Ricoh Heads
Resolution 2400dpi 1200dpi
Max Speed 1-3min/ printing 60-90s/ printing 60-90s/ printing
Object Lenagth 8-30 cm
Object Diameter 5-15 cm
Print Method Micro Piezo Print Technology, Intelligence Drops Transformation Technology
Printhead Height 1-3 mm 1-10 mm 1-15 mm
Ink Color CMYK/ CMYK + W / CMYK+W+V
Ink Supply System Bulk ink supply + White ink stirring
Curing Method High Quality UV-LED Lamp
Interface USB 3.0
Rip Software Maintop (Standard)/ FlexiPRINT (Optional)
Working Environment Temperature 18-30 Celsius, Humidity 30-70 RH, Clean room, Low dust, Less sun light
Power AC 110/ 220V, 50/ 60Hz, 1100w
Size & Weight Machine L1380×W535×H780 mm/ 140KG
Packing L1440×W595×H880 mm/ 180KG

Application

application images
application images
application images
application images
application images
application images
